C40 Cassetted Blind with Sidewinder

PART NO C40-60**C40-90**C40-120

C40 Cassetted Blind with Sidewinder

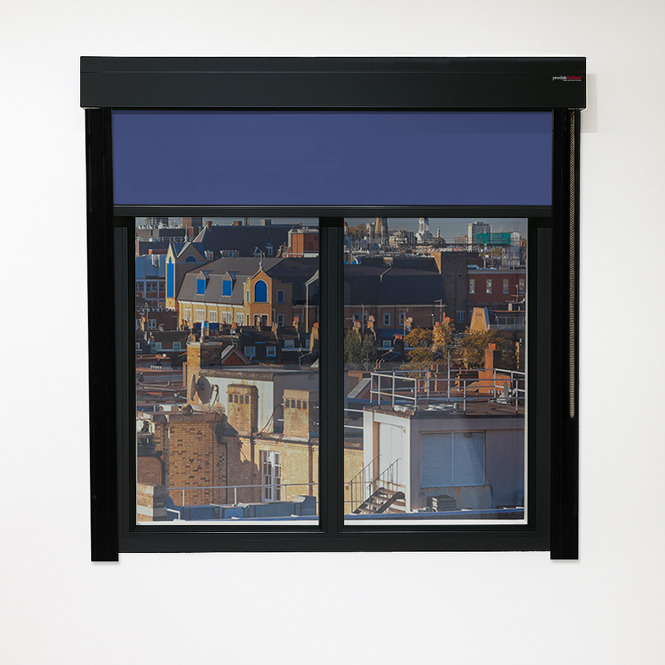

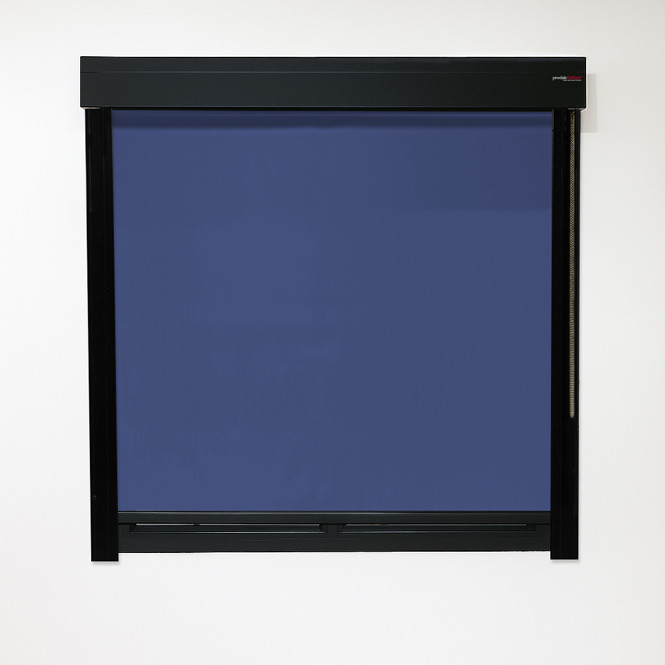

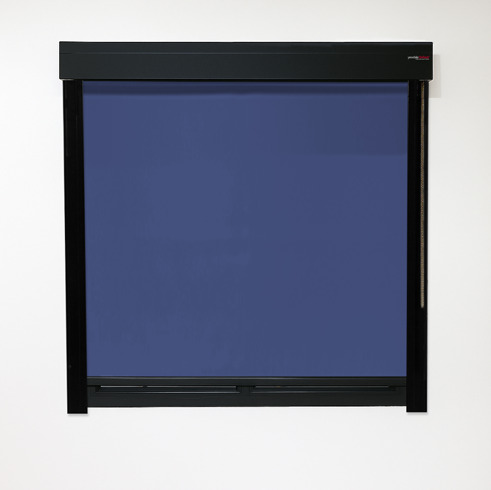

A quality sidewinder cassetted blind with side channels which hold the fabric in place as well as limit the level of light entering the room. Especially effective when blackout fabric is used.  The aluminium headbox protects the fabric and also provides an attractive finish. Available in a wide range of barrels to suit a variety of glazing options.

  • 32/45/53/70mm diameter barrels
  • Aluminium bottom bar with pile seal
  • Slipstream® sidewinder mechanism

Downloads

Benefits

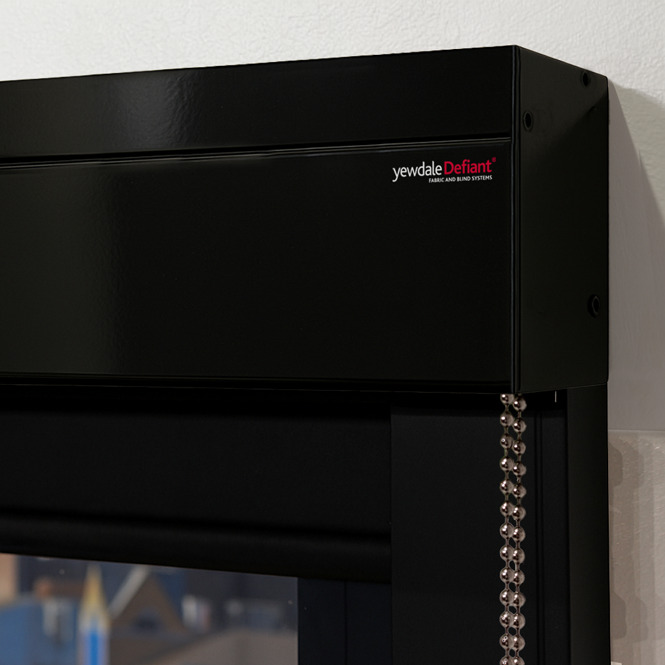

All of the YewdaleDefiant® C40 sidewinder cassetted blinds come with an enclosed aluminium headbox and side channels as standard.

The cassette is designed for top or face fixing and accommodates 32, 45, 53 or 70mm grooved aluminium barrels, depending on blind size and fabric weight.

The fabric is locked into a groove in the barrel and features an aluminium bottom bar with pile seal.

A robust Slipstream® sidewinder mechanism provides the effective means of operation with the use of metal control chain, held in place by a chain tidy.

Studs fitted at the edge of the fabric retain it within side channels.

Black or white hardware as standard.

Options

  • Black or white hardware
  • Available without side channels see product C20-60/90/120
  • Tracker fabric retaining system
  • Available in any RAL colour.

Specification

YewdaleDefiant® C40-60/90/120 cassetted blind with side channels as manufactured by Yewdale, +44 (0)1268 570900. Flame retardant fabric from the YewdaleDefiant® range, locked into grooved 32/45/53/70mm aluminium barrel along with aluminium bottom bar as standard. Black/white aluminium cassette, side channels and bottom bar and incorporating metal control chain.

Code Description Cassette size (HxD) Barrel size Ø Side channel size (WxD)
C40-60**C40-90**C40-120 C40 Sidewinder cassette blind with side channels 77 x 73mm**105 x 95mm**140 x 120mm 32mm**45mm**53/70mm 55 x 13mm**55 x 13mm**55 x 13mm

Based on fabric weight of 400g/m², e.g. Dart. Larger sizes may be possible with lighter/thinner fabrics. Sizes shown in millimetres unless otherwise specified.

Dim Out
Black Out
Screen
Fire Retardancy
Suitable for roller blinds
Suitable for vertical blinds
Anti Bacterial
Wipe Clean
Wipe with damp sponge
Suitable for moist conditions
100% Polyester

Dim Out

Black Out

Screen

Fire Retardancy

Suitable for roller blinds

Suitable for vertical blinds

Anti Bacterial

Wipe Clean

Wipe with damp sponge

Suitable for moist conditions

100% Polyester

System Components

Product Details

Benefits

All of the YewdaleDefiant® C40 sidewinder cassetted blinds come with an enclosed aluminium headbox and side channels as standard.

The cassette is designed for top or face fixing and accommodates 32, 45, 53 or 70mm grooved aluminium barrels, depending on blind size and fabric weight.

The fabric is locked into a groove in the barrel and features an aluminium bottom bar with pile seal.

A robust Slipstream® sidewinder mechanism provides the effective means of operation with the use of metal control chain, held in place by a chain tidy.

Studs fitted at the edge of the fabric retain it within side channels.

Black or white hardware as standard.

Options

  • Black or white hardware
  • Available without side channels see product C20-60/90/120
  • Tracker fabric retaining system
  • Available in any RAL colour.

Specification

YewdaleDefiant® C40-60/90/120 cassetted blind with side channels as manufactured by Yewdale, +44 (0)1268 570900. Flame retardant fabric from the YewdaleDefiant® range, locked into grooved 32/45/53/70mm aluminium barrel along with aluminium bottom bar as standard. Black/white aluminium cassette, side channels and bottom bar and incorporating metal control chain.

Cassette size (HxD): 77 x 73mm**105 x 95mm**140 x 120mm

Barrel size Ø: 32mm**45mm**53/70mm

Side channel size (WxD): 55 x 13mm**55 x 13mm**55 x 13mm

Based on fabric weight of 400g/m², e.g. Dart. Larger sizes may be possible with lighter/thinner fabrics. Sizes shown in millimetres unless otherwise specified.

Fabric Options

Dim Out
Black Out
Screen
Fire Retardancy
Suitable for roller blinds
Suitable for vertical blinds
Anti Bacterial
Wipe Clean
Wipe with damp sponge
Suitable for moist conditions
100% Polyester

Dim Out

Black Out

Screen

Fire Retardancy

Suitable for roller blinds

Suitable for vertical blinds

Anti Bacterial

Wipe Clean

Wipe with damp sponge

Suitable for moist conditions

100% Polyester

System Components

System Components
