C47 Cassetted Blind Electric

PART NO C47-90**C47-120

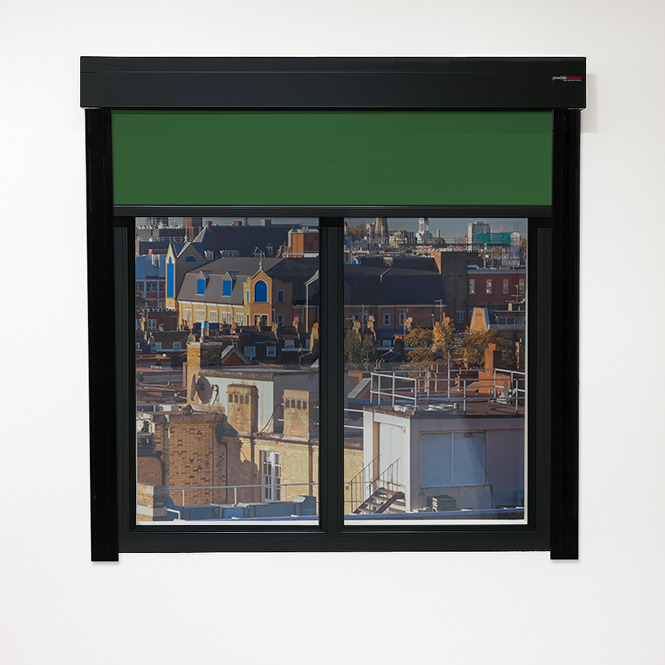

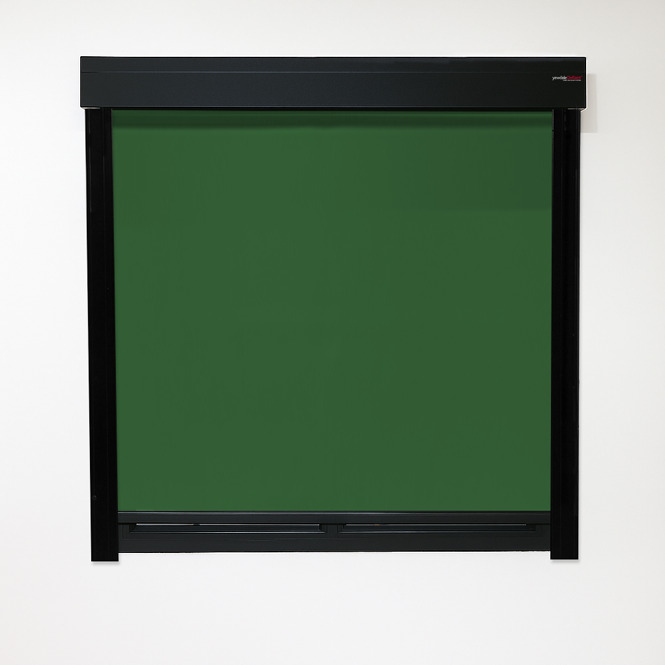

C47 Cassetted Blind Electric

A premium electric cassetted blind which will give you years of trouble-free service.  A quiet and reliable motor is housed within the barrel and further protected by the robust aluminium head-box which gives a neat and attractive finish.  Side channels hold the fabric in place as well as limit the level of light entering the room.  Comes as standard with black or white hardware.

  • 53/70mm barrel diameter
  • 230v AC motor
  • Option to have remote or group control

Downloads

Benefits

The YewdaleDefiant® C47 electric cassetted blind with side channels features a Yewdale motor as standard.

The cassette is designed for top or face fixing and accommodates a 53mm or 70mm grooved aluminium barrel which houses the 230v AC Yewdale motor. The motor is controlled by a switch/transformer which may be surface or flush-mounted.

The fabric is locked into a groove in the barrel with studs fitted at the edge of the fabric to retain it within the side channels. Although the fabric can't be pulled out it may be slid out sideways for easy repair or replacement.

Aluminium teardrop bottom bar and black or white hardware as standard.

Options

  • Black or white hardware
  • Available without side channels see product C27-90/120
  • Remote and/or group control systems in place of a single switch
  • Tracker fabric retaining system
  • Available in any RAL colour

Specification

YewdaleDefiant® C47-90/120 electric cassetted blind with side channels as manufactured by Yewdale, +44 (0)1268 570900. Flame retardant fabric from the YewdaleDefiant® range, locked into grooved 53/70mm aluminium barrel along with aluminium bottom bar as standard. 230v AC Yewdale motor is housed within black/white aluminium cassette with side channels and bottom bar.

Code Description Cassette size (HxD) Barrel size Ø Side channel size (WxD) Min Width
C47-90**C47-120 C47 Electric cassette blind 105 x 95mm**140 x 120mm 53mm**53/70mm 55x 13mm**55x 13mm 570mm

Based on fabric weight of 400g/m², e.g. Dart. Larger sizes may be possible with lighter/thinner fabrics. Sizes shown in millimetres unless otherwise specified.

Dim Out
Black Out
Screen
Fire Retardancy
Suitable for roller blinds
Suitable for vertical blinds
Anti Bacterial
Wipe Clean
Wipe with damp sponge
Suitable for moist conditions
100% Polyester

Dim Out

Black Out

Screen

Fire Retardancy

Suitable for roller blinds

Suitable for vertical blinds

Anti Bacterial

Wipe Clean

Wipe with damp sponge

Suitable for moist conditions

100% Polyester

System Components

Product Details

Benefits

The YewdaleDefiant® C47 electric cassetted blind with side channels features a Yewdale motor as standard.

The cassette is designed for top or face fixing and accommodates a 53mm or 70mm grooved aluminium barrel which houses the 230v AC Yewdale motor. The motor is controlled by a switch/transformer which may be surface or flush-mounted.

The fabric is locked into a groove in the barrel with studs fitted at the edge of the fabric to retain it within the side channels. Although the fabric can't be pulled out it may be slid out sideways for easy repair or replacement.

Aluminium teardrop bottom bar and black or white hardware as standard.

Options

  • Black or white hardware
  • Available without side channels see product C27-90/120
  • Remote and/or group control systems in place of a single switch
  • Tracker fabric retaining system
  • Available in any RAL colour

Specification

YewdaleDefiant® C47-90/120 electric cassetted blind with side channels as manufactured by Yewdale, +44 (0)1268 570900. Flame retardant fabric from the YewdaleDefiant® range, locked into grooved 53/70mm aluminium barrel along with aluminium bottom bar as standard. 230v AC Yewdale motor is housed within black/white aluminium cassette with side channels and bottom bar.

Cassette size (HxD): 105 x 95mm**140 x 120mm

Barrel size Ø: 53mm**53/70mm

Side channel size (WxD): 55x 13mm**55x 13mm

Min Width: 570mm

Based on fabric weight of 400g/m², e.g. Dart. Larger sizes may be possible with lighter/thinner fabrics. Sizes shown in millimetres unless otherwise specified.
