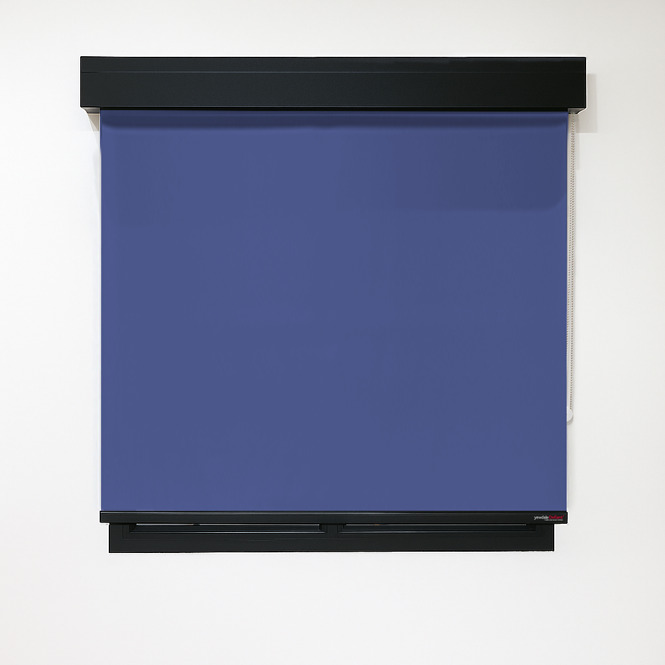

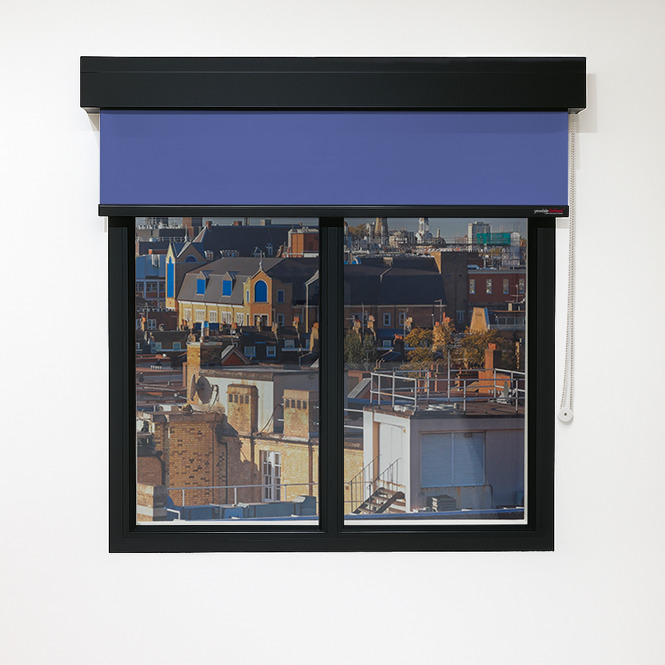

C20 Cassetted Blind with Sidewinder

PART NO C20-60**C20-90**C20-120

C20 Cassetted Blind with Sidewinder

The YewdaleDefiant^® C20 sidewinder cassette blind comes with an enclosed aluminium headbox which protects the blind from damage and prevents build-up of dust within the barrel and mechanism. A robust Slipstream^® sidewinder mechanism provides the effective means of operation.

Square or rounded headbox
32/45/53/70mm barrel diameters
Slipstream sidewinder mechanism
Available in any RAL colour
Compliant with child safety (BS EN 13120:2009+A1:2014)

Enquire Now Request a quote

Downloads

Brochure Datasheet

Product Details Fabric Options System Components

Benefits

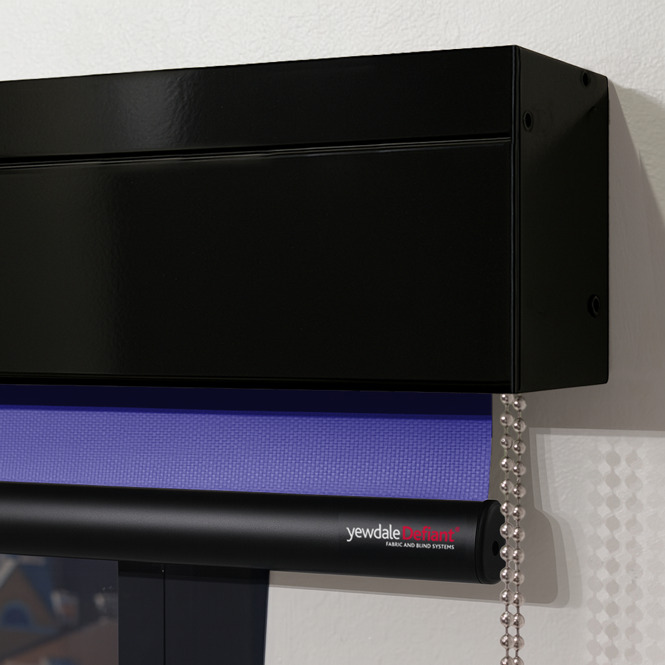

The excellent performance of a YewdaleDefiant^® cassette blind is enhanced by its high-quality sidewinder mechanism, which is simple to operate and allows precise control of the blind’s position. The system is available with both square and rounded headboxes, enabling selection of a style to suit the surrounding environment. A robust metal control chain is secured with a chain tidy for neatness and safety. Designed for either top or face fixing, the cassette accommodates 32, 45, 53, or 70 mm grooved aluminium barrels, depending on the blind size and fabric weight. The fabric is secured within a groove in the barrel and finished with an aluminium bottom bar, with hardware supplied as standard in either black or white.

Quick and easy installation
Block light with powder coated end plates
Dedicated support team available to assist with installation and product enquiries
Blackout options available

Options

Square or rounded headboxes
Black or white hardware as standard
Option to have hardware in any RAL colour
Option to have side channels, see product C40-60/90/120
Tracker fabric retaining system

Specification

YewdaleDefiant^® C20-60/90/120 cassetted blind as manufactured by Yewdale, +44 (0)1268 570900. Flame retardant fabric from the YewdaleDefiant^® range, locked into grooved 32/45/53/70mm aluminium barrel along with aluminium Tear Drop bottom bar as standard. Black/white aluminium cassette and bottom bar and incorporating metal control chain.

Find this product on NBS Source

Code	Description	Cassette size (HxD)	Barrel size Ø	Side channel size (WxD)
C20-60C20-90C20-120	C20 Cassetted Blind with Sidewinder	77x73mm105x95mm140x120mm	32mm45mm53/70mm	n/an/an/a

Based on fabric weight of 400g/m², e.g. Dart. Larger sizes may be possible with lighter/thinner fabrics. Sizes shown in millimetres unless otherwise specified.

C20-60 recess size width minus 3mm & drop minus 2mm = Blind size minus 43mm = fabric width

C20-90 recess size width minus 3mm & drop minus 2mm = Blind size minus 43mm = fabric width

C20-120 recess size width minus 3mm & drop minus 2mm = Blind size minus 49mm = fabric width
