Retractable insect screen - Yewdale

F30 Insect Screen with Sidewinder

PART NO F30
  • Video

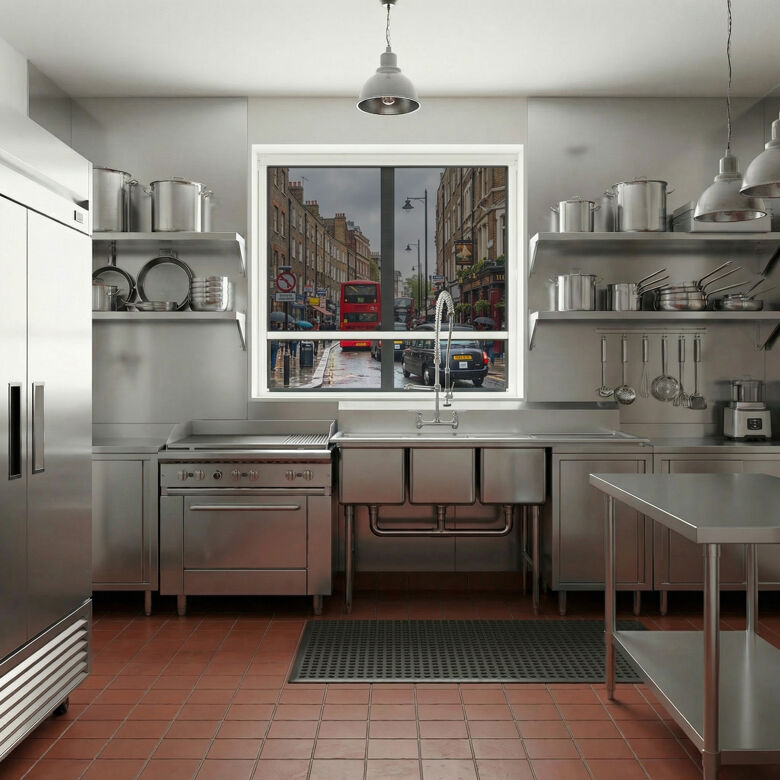

  • F30 Commercial Kitchen

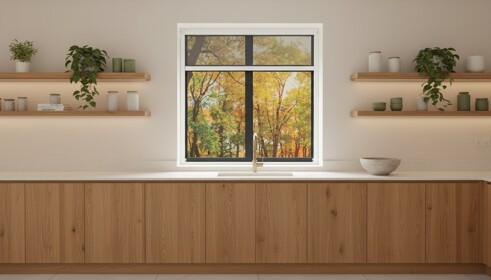

  • F30 Image (4)

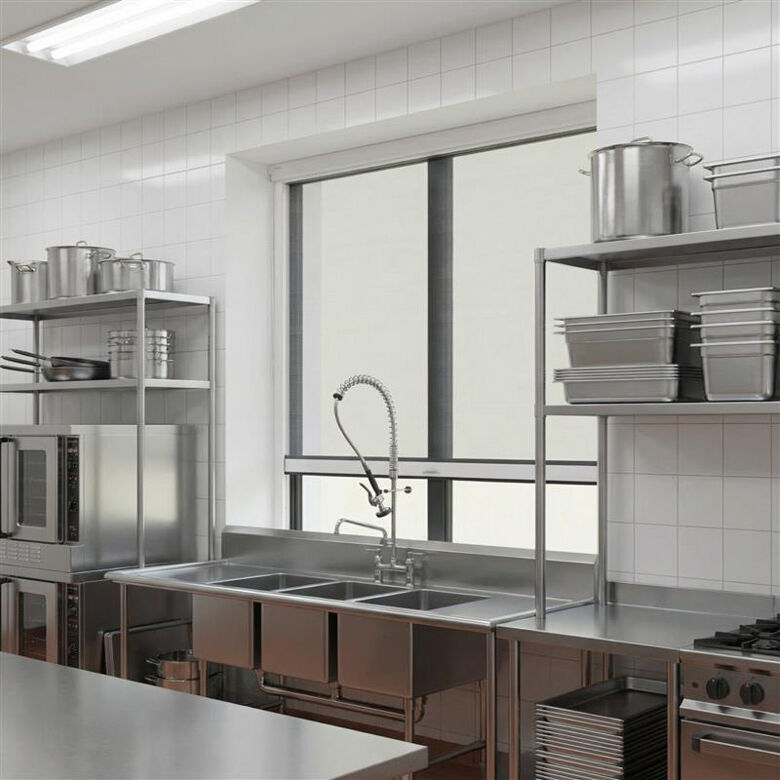

  • F30 Commercial Kitchen Side angle
PART NO F30

F30 Insect Screen with Sidewinder

A discreet yet attractive retractable insect screen for almost all types of window or door openings. Smooth operation is guaranteed with a simple bead-chain sidewinder control and a simple installation with universal top fix metal brackets. Rot-proof PVC coated fibreglass mesh and high-grade nylon fittings make this a trouble-free quality system.

  • Flame retardant mesh
  • Rot-proof
  • Powdercoated cassette
Enquire Now Request a quote

Downloads

Brochure Datasheet
Share:
Product Details System Components

Benefits

The YewdaleDefiant F30 retractable insect screen utilises a simple bead-chain sidewinder control as standard.

White metal universal brackets provide secure top fixing.

This screen comes with a powder-coated extruded aluminium cassette and side guide channels.

It is made from a rot-proof PVC coated fibreglass mesh which is locked into the barrel and bottom bar profile.

Options

We also manufacture this insect screen with a slow rise spring

Single door fly screen

Double door fly screen

Specification

The YewdaleDefiant® F30 retractable insect screen with sidewinder operation as manufactured by Yewdale, +44 (0)1268 570900. Roll-up flame retardant, rot-proof PVC coated fibreglass mesh within white powder-coated aluminium cassette, guide channels and bottom bar. Supported by sturdy metal brackets and incorporating plastic control chain.

Code Description Min - Max Width Min - Max Drop Max M2 Cassette Size (HxD) Side Channel Size (WxD)
F30 F30 Insect screen with Sidewinder 800 - 1600 400 - 2500 3.5 56x43mm 40x22mm

Sizes shown in millimetres unless otherwise specified.

System Components

Product Details

Benefits

The YewdaleDefiant F30 retractable insect screen utilises a simple bead-chain sidewinder control as standard.

White metal universal brackets provide secure top fixing.

This screen comes with a powder-coated extruded aluminium cassette and side guide channels.

It is made from a rot-proof PVC coated fibreglass mesh which is locked into the barrel and bottom bar profile.

Options

We also manufacture this insect screen with a slow rise spring

Single door fly screen

Double door fly screen

Specification

The YewdaleDefiant® F30 retractable insect screen with sidewinder operation as manufactured by Yewdale, +44 (0)1268 570900. Roll-up flame retardant, rot-proof PVC coated fibreglass mesh within white powder-coated aluminium cassette, guide channels and bottom bar. Supported by sturdy metal brackets and incorporating plastic control chain.

Min - Max Width: 800 - 1600

Min - Max Drop: 400 - 2500

Max M2: 3.5

Cassette Size (HxD): 56x43mm

Sizes shown in millimetres unless otherwise specified.
