C75 Blackout Unit Electric

PART NO C75

C75 Blackout Unit Electric

A premium 100% blackout unit with the optional luxury of fingertip remote control.  A quiet and reliable 240v AC Yewdale motor is housed within the 53mm barrel and supported by a sturdy, aluminium cassette system. No light is filtering through this unit as it includes durable blackout fabric, side channels, pile-seals and baffles. Comes with black powder-coated hardware.

  • 100% blackout guaranteed
  • 240v AC Yewdale motor
  • Remote control option

Downloads

Benefits

The YewdaleDefiant C75 electric blackout unit features a Yewdale motor as standard.

All hardware is black powder-coated aluminium, with moulded black plastic fittings, for face or recess fixing and encloses 53mm grooved aluminium barrel.

Heavy-duty gear mechanism at is located to the right and is controlled by a 240v AC Yewdale motor.

Blackout fabric has a heavy-duty bottom bar which is locked into a groove in the barrel and runs in 75mm side channels.

The slim bottom channel provides a positive attachment to the side channels.

There are light-transfer baffles within the side and bottom channels.  The side channels and head-box are also fitted with pile-seal light sealing.

Options

  • White hardware
  • No bottom channel, with a bottom bar running down to the sill
  • Remote and/ or group control systems
  • Available in any RAL colour.

Specification

The YewdaleDefiant® C75 electric 100% blackout unit with 240v AC Yewdale motor as manufactured by Yewdale, +44 (0)1268 570900. Flame retardant blackout fabric from the YewdaleDefiant® range, locked into grooved 53mm aluminium barrel along with aluminium bottom rail as standard. 240v AC Yewdale motor housed within black/white powder-coated aluminium head-box cassette, side and bottom channels and bottom bar.

Code Description Min Width Max Width Max Drop Max m2
C75 C75 Electric Blackout Blind Unit 700 3600 3600 10.8

Based on fabric weight of 400g/m², e.g. Dart. Larger sizes may be possible with lighter/thinner fabrics. Sizes shown in millimetres unless otherwise specified.

Dim Out
Black Out
Screen
Fire Retardancy
Suitable for roller blinds
Suitable for vertical blinds
Anti Bacterial
Wipe Clean
Wipe with damp sponge
Suitable for moist conditions
100% Polyester

Dim Out

Black Out

Screen

Fire Retardancy

Suitable for roller blinds

Suitable for vertical blinds

Anti Bacterial

Wipe Clean

Wipe with damp sponge

Suitable for moist conditions

100% Polyester

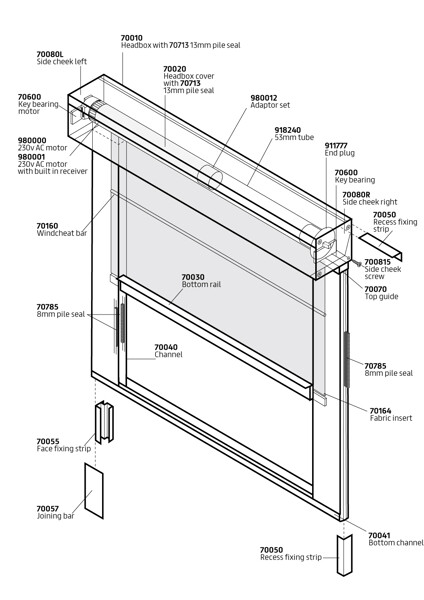

System Components

Product Details

Benefits

The YewdaleDefiant C75 electric blackout unit features a Yewdale motor as standard.

All hardware is black powder-coated aluminium, with moulded black plastic fittings, for face or recess fixing and encloses 53mm grooved aluminium barrel.

Heavy-duty gear mechanism at is located to the right and is controlled by a 240v AC Yewdale motor.

Blackout fabric has a heavy-duty bottom bar which is locked into a groove in the barrel and runs in 75mm side channels.

The slim bottom channel provides a positive attachment to the side channels.

There are light-transfer baffles within the side and bottom channels.  The side channels and head-box are also fitted with pile-seal light sealing.

Options

  • White hardware
  • No bottom channel, with a bottom bar running down to the sill
  • Remote and/ or group control systems
  • Available in any RAL colour.

Specification

The YewdaleDefiant® C75 electric 100% blackout unit with 240v AC Yewdale motor as manufactured by Yewdale, +44 (0)1268 570900. Flame retardant blackout fabric from the YewdaleDefiant® range, locked into grooved 53mm aluminium barrel along with aluminium bottom rail as standard. 240v AC Yewdale motor housed within black/white powder-coated aluminium head-box cassette, side and bottom channels and bottom bar.

Min Width: 700

Max Width: 3600

Max Drop: 3600

Max m2: 10.8

Based on fabric weight of 400g/m², e.g. Dart. Larger sizes may be possible with lighter/thinner fabrics. Sizes shown in millimetres unless otherwise specified.

Fabric Options

Dim Out
Black Out
Screen
Fire Retardancy
Suitable for roller blinds
Suitable for vertical blinds
Anti Bacterial
Wipe Clean
Wipe with damp sponge
Suitable for moist conditions
100% Polyester

Dim Out

Black Out

Screen

Fire Retardancy

Suitable for roller blinds

Suitable for vertical blinds

Anti Bacterial

Wipe Clean

Wipe with damp sponge

Suitable for moist conditions

100% Polyester

System Components

System Components
