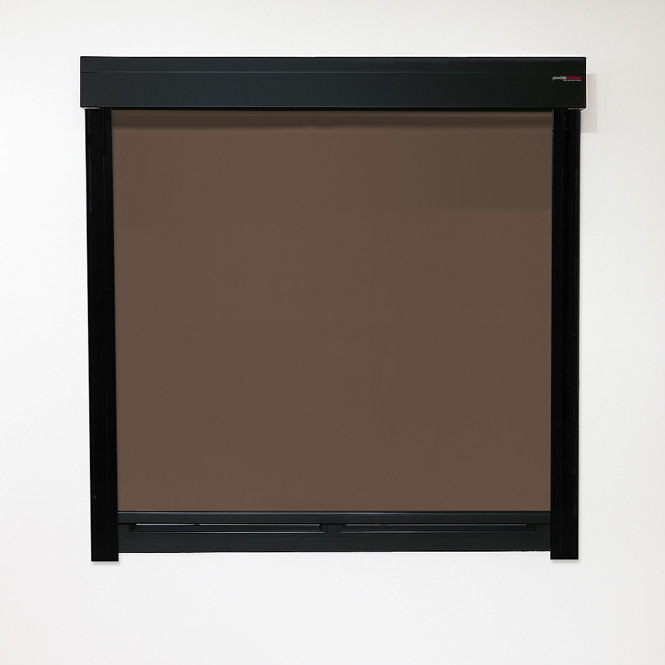

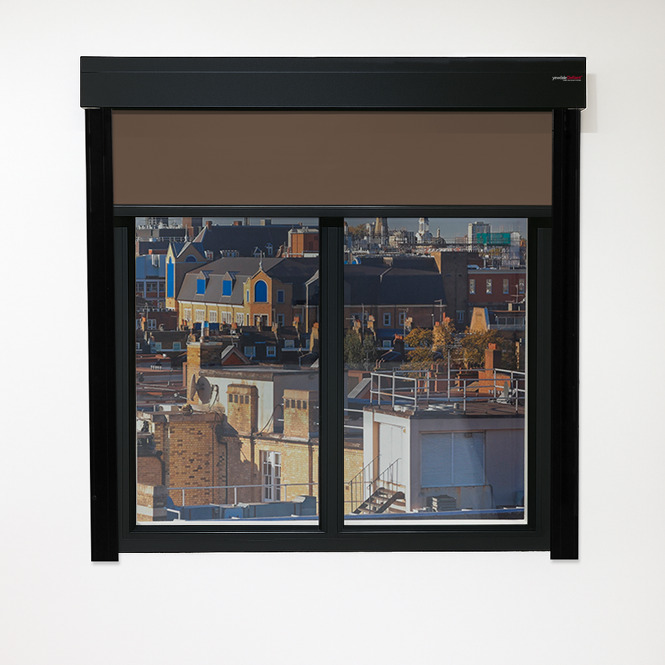

C49 Cassetted Blind Low Voltage Battery 7.4 V DC

PART NO C49-90**C49-120

C49 Cassetted Blind Low Voltage Battery 7.4 V DC

For simple automation, the blind's barrel houses a battery-powered motor with a remote control which includes limit stop functionality and pre-set stops. The fabric will always look its best thanks to the protection of the headbox and the tracker side channels keeping the fabric taut. Comes with black or white hardware as standard.

  • 7.4 DC battery-powered motor
  • Remote control operation
  • Available in any RAL colour

Downloads

Benefits

The YewdaleDefiant® C49 electric cassetted blind with side channels features a 7.4v DC battery powered tubular motor.

The cassette is designed for top or face fixing which accommodates a 40mm grooved aluminium barrel which houses the motor. The motor makes operation easy thanks to its remote control, with a quiet and soft start/stop motion and electronic stops.

The fabric is locked into a groove in the barrel with studs fitted at the edge of the fabric to retain it within the side channels.

Comes with an aluminium bottom bar and black or white hardware as standard.

Options

  • Black or white hardware as standard
  • Tracker fabric retaining system
  • Available in any RAL colour

Specification

The YewdaleDefiant® C49 electric cassetted blind with side channels as manufactured by Yewdale, +44(0)1268 570900. Flame retardant fabric from the YewdaleDefiant® range, locked into a grooved 40mm aluminium barrel along with an aluminium bottom bar as standard. 7.4v DC motor housed within a black/white aluminium cassette with side channels and bottom bar.

Please refer to NBS Plus N10 240.

Code Description Cassette size (HxD) Barrel Size Ø Side Channel Size (WxD)
C49-90**C49-120 C49 Cassetted blind with Low Voltage Battery 7.4v DC 77 x 73mm**105 x 95mm 40mm**40mm 55 x 13mm**55 x 13mm

Based on fabric weight of 400g/m², e.g. Dart. Larger sizes may be possible with lighter/thinner fabrics. Sizes shown in millimetres unless otherwise specified.

Dim Out
Black Out
Screen
Fire Retardancy
Suitable for roller blinds
Suitable for vertical blinds
Anti Bacterial
Wipe Clean
Wipe with damp sponge
Suitable for moist conditions
100% Polyester

Dim Out

Black Out

Screen

Fire Retardancy

Suitable for roller blinds

Suitable for vertical blinds

Anti Bacterial

Wipe Clean

Wipe with damp sponge

Suitable for moist conditions

100% Polyester

System Components

Product Details

Benefits

The YewdaleDefiant® C49 electric cassetted blind with side channels features a 7.4v DC battery powered tubular motor.

The cassette is designed for top or face fixing which accommodates a 40mm grooved aluminium barrel which houses the motor. The motor makes operation easy thanks to its remote control, with a quiet and soft start/stop motion and electronic stops.

The fabric is locked into a groove in the barrel with studs fitted at the edge of the fabric to retain it within the side channels.

Comes with an aluminium bottom bar and black or white hardware as standard.

Options

  • Black or white hardware as standard
  • Tracker fabric retaining system
  • Available in any RAL colour

Specification

The YewdaleDefiant® C49 electric cassetted blind with side channels as manufactured by Yewdale, +44(0)1268 570900. Flame retardant fabric from the YewdaleDefiant® range, locked into a grooved 40mm aluminium barrel along with an aluminium bottom bar as standard. 7.4v DC motor housed within a black/white aluminium cassette with side channels and bottom bar.

Please refer to NBS Plus N10 240.

Cassette size (HxD): 77 x 73mm**105 x 95mm

Barrel Size Ø: 40mm**40mm

Side Channel Size (WxD): 55 x 13mm**55 x 13mm

Based on fabric weight of 400g/m², e.g. Dart. Larger sizes may be possible with lighter/thinner fabrics. Sizes shown in millimetres unless otherwise specified.

Fabric Options

Dim Out
Black Out
Screen
Fire Retardancy
Suitable for roller blinds
Suitable for vertical blinds
Anti Bacterial
Wipe Clean
Wipe with damp sponge
Suitable for moist conditions
100% Polyester

Dim Out

Black Out

Screen

Fire Retardancy

Suitable for roller blinds

Suitable for vertical blinds

Anti Bacterial

Wipe Clean

Wipe with damp sponge

Suitable for moist conditions

100% Polyester

System Components

System Components
