C24 Cassetted Blind with Crank

PART NO C24-90**C24-120

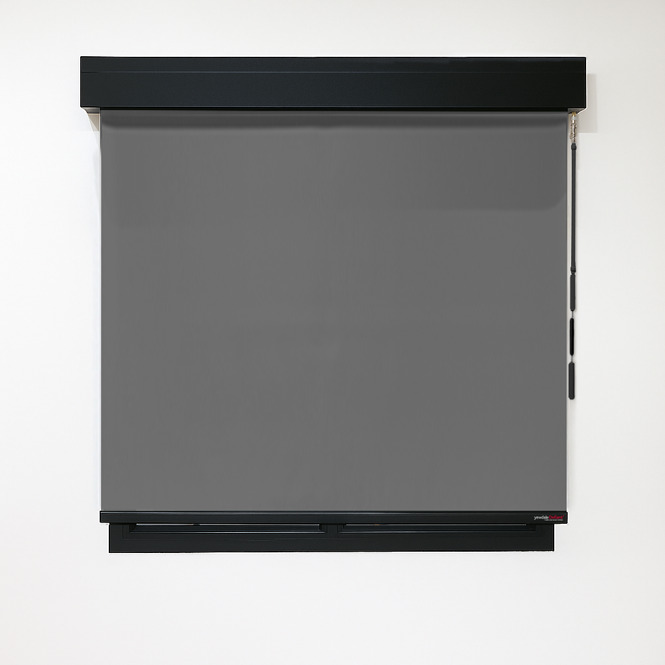

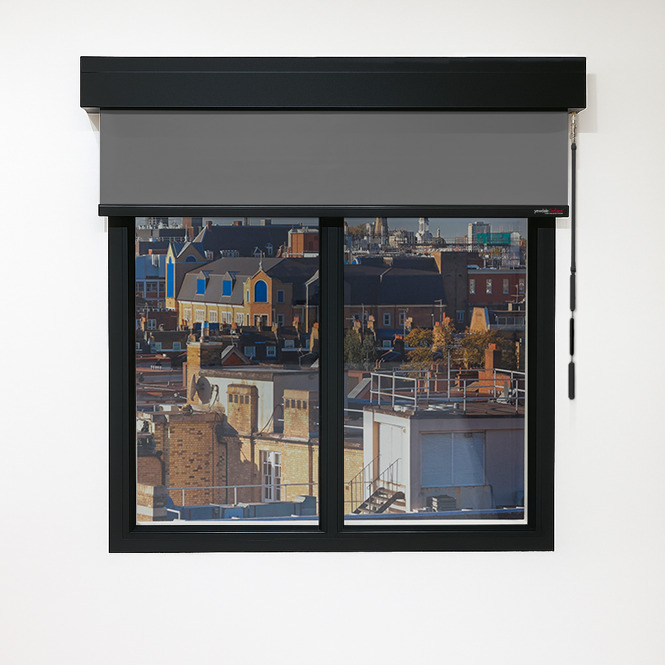

C24 Cassetted Blind with Crank

With a wide choice of barrel diameters, this attractive cassette blind with a detachable crank can be used in a range of applications. A robust 1:3 gear mechanism operates the blind and the cassette is designed for top or face fixing  Comes with a teardrop bottom bar in black or white as standard.

  • 45/53/70mm barrel diameters
  • Detachable crank handle
  • Child safe - no cords or chains

Downloads

Benefits

Durability and simplicity make the C24 a good choice for a vast range of applications.

With its aluminium construction and powerful gear controls, it will perform dependably in all kinds of contract applications.

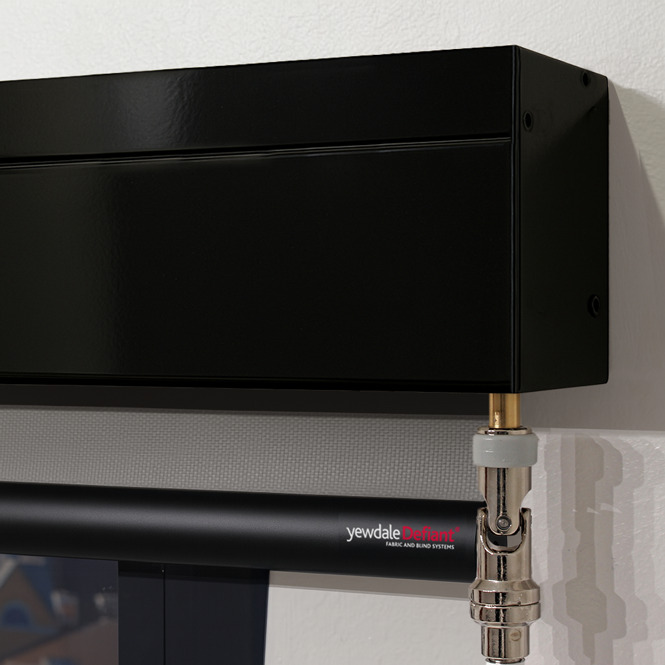

The geared crank handle and mechanism ensures smooth blind control and is safer for areas where cords are a threat.

The fabric is locked into the barrel and bottom bar and supported by sturdy supports.

Options

  • Black or white hardware
  • Available with side channels see product C44-90/120
  • Fixed crank handle
  • Tracker fabric retaining system
  • Available in any RAL colour.

Specification

YewdaleDefiant® C24-90/120 crank control cassetted blind as manufactured by Yewdale, +44 (0)1268 570900. Flame retardant fabric from the YewdaleDefiant® range, locked into grooved 45/53/70mm aluminium barrel along with aluminium bottom bar as standard. Robust vandal resistant 1:3½ crank mechanism and pin end housed within black/white aluminium cassette, supported by sturdy brackets.

Code Description Cassette size (HxD) Barrel size Ø Side channel size (WxD)
C24-90**C24-120 C24 cassette blind with crank 105 x 95mm**140 x 120mm 53/70mm**53/70mm n/a**n/a

Based on fabric weight of 400g/m², e.g. Dart. Larger sizes may be possible with lighter/thinner fabrics. Sizes shown in millimetres unless otherwise specified.

Dim Out
Black Out
Screen
Fire Retardancy
Suitable for roller blinds
Suitable for vertical blinds
Anti Bacterial
Wipe Clean
Wipe with damp sponge
Suitable for moist conditions
100% Polyester

Dim Out

Black Out

Screen

Fire Retardancy

Suitable for roller blinds

Suitable for vertical blinds

Anti Bacterial

Wipe Clean

Wipe with damp sponge

Suitable for moist conditions

100% Polyester

System Components

Product Details

Benefits

Durability and simplicity make the C24 a good choice for a vast range of applications.

With its aluminium construction and powerful gear controls, it will perform dependably in all kinds of contract applications.

The geared crank handle and mechanism ensures smooth blind control and is safer for areas where cords are a threat.

The fabric is locked into the barrel and bottom bar and supported by sturdy supports.

Options

  • Black or white hardware
  • Available with side channels see product C44-90/120
  • Fixed crank handle
  • Tracker fabric retaining system
  • Available in any RAL colour.

Specification

YewdaleDefiant® C24-90/120 crank control cassetted blind as manufactured by Yewdale, +44 (0)1268 570900. Flame retardant fabric from the YewdaleDefiant® range, locked into grooved 45/53/70mm aluminium barrel along with aluminium bottom bar as standard. Robust vandal resistant 1:3½ crank mechanism and pin end housed within black/white aluminium cassette, supported by sturdy brackets.

Cassette size (HxD): 105 x 95mm**140 x 120mm

Barrel size Ø: 53/70mm**53/70mm

Side channel size (WxD):

Based on fabric weight of 400g/m², e.g. Dart. Larger sizes may be possible with lighter/thinner fabrics. Sizes shown in millimetres unless otherwise specified.

Fabric Options

Dim Out
Black Out
Screen
Fire Retardancy
Suitable for roller blinds
Suitable for vertical blinds
Anti Bacterial
Wipe Clean
Wipe with damp sponge
Suitable for moist conditions
100% Polyester

Dim Out

Black Out

Screen

Fire Retardancy

Suitable for roller blinds

Suitable for vertical blinds

Anti Bacterial

Wipe Clean

Wipe with damp sponge

Suitable for moist conditions

100% Polyester

System Components

System Components
