R56 Overhead Roller Blind with Crank

PART NO R56

R56 Overhead Roller Blind with Crank

Ideal for roof windows and awkward or inaccessible locations. The detachable magnetic crank handle with a 1:4 geared mechanism makes easy work of operating this blind, especially when the blind is at height or difficult to access.  Tamper-proof and child safe.

  • Ideal for roof lights
  • 1:4 geared control mechanism
  • Detachable magnetic crank handle

Downloads

Benefits

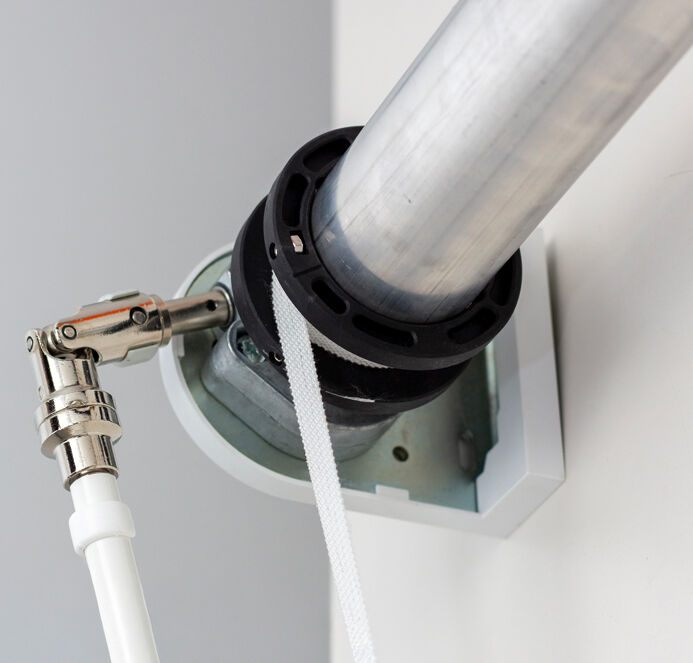

Utilising heavy duty componentry and a powerful spring action, the blind can be confidently specified for awkward or inaccessible locations. The detachable magnetic crank handle makes the blind drive easy to reach.

The fabric is mounted onto a sprung 57mm aluminium barrel whilst the other end is fitted to a white teardrop aluminium bottom bar attached to two draw tapes. These tapes are attached between flanged guides to the 50mm drive barrel operated by the mechanism and crank.

Select your ideal colour from the flame retardant YewdaleDefiant fabric range.

Options

  • Tear Drop aluminium bottom bar in black or silver
  • Fixed crank handle

Specification

YewdaleDefiant® R56 crank operation overhead roller blind with 1:4 geared crank mechanism.  Flame retardant fabric from the YewdaleDefiant® range, on 57mm aluminium barrel with enclosed spring attached to white teardrop aluminium bottom bar as standard. 53mm drive barrel connected to gear control crank mechanism operates the blind by means of draw-tapes to the bottom bar. Supported by sturdy, attractive brackets and incorporating magnetic detachable crank handle.

Code Description Min Width Max Width Max Drop Max m2
R56 Overhead Crank 720 2500 2000 4

Based on fabric weight of 220g/m², e.g. Thames. Use of heavier fabrics may require appropriate reductions. Sizes shown in millimetres unless otherwise specified.

Dim Out
Black Out
Screen
Fire Retardancy
Suitable for roller blinds
Suitable for vertical blinds
Anti Bacterial
Wipe Clean
Wipe with damp sponge
Suitable for moist conditions
100% Polyester

Dim Out

Black Out

Screen

Fire Retardancy

Suitable for roller blinds

Suitable for vertical blinds

Anti Bacterial

Wipe Clean

Wipe with damp sponge

Suitable for moist conditions

100% Polyester

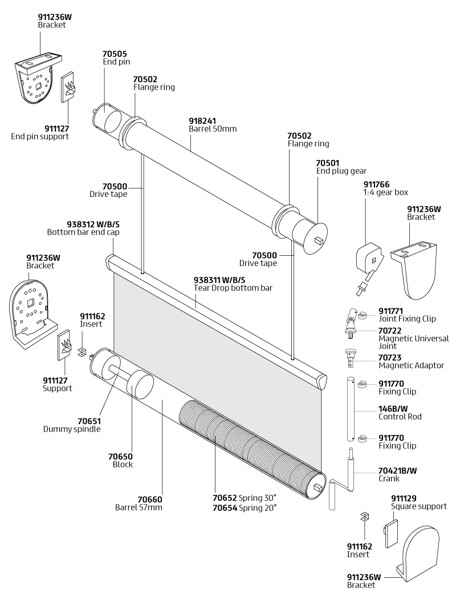

System Components

Product Details

Benefits

Utilising heavy duty componentry and a powerful spring action, the blind can be confidently specified for awkward or inaccessible locations. The detachable magnetic crank handle makes the blind drive easy to reach.

The fabric is mounted onto a sprung 57mm aluminium barrel whilst the other end is fitted to a white teardrop aluminium bottom bar attached to two draw tapes. These tapes are attached between flanged guides to the 50mm drive barrel operated by the mechanism and crank.

Select your ideal colour from the flame retardant YewdaleDefiant fabric range.

Options

  • Tear Drop aluminium bottom bar in black or silver
  • Fixed crank handle

Specification

YewdaleDefiant® R56 crank operation overhead roller blind with 1:4 geared crank mechanism.  Flame retardant fabric from the YewdaleDefiant® range, on 57mm aluminium barrel with enclosed spring attached to white teardrop aluminium bottom bar as standard. 53mm drive barrel connected to gear control crank mechanism operates the blind by means of draw-tapes to the bottom bar. Supported by sturdy, attractive brackets and incorporating magnetic detachable crank handle.

Min Width: 720

Max Width: 2500

Max Drop: 2000

Max m2: 4

Based on fabric weight of 220g/m², e.g. Thames. Use of heavier fabrics may require appropriate reductions. Sizes shown in millimetres unless otherwise specified.

Fabric Options

Dim Out
Black Out
Screen
Fire Retardancy
Suitable for roller blinds
Suitable for vertical blinds
Anti Bacterial
Wipe Clean
Wipe with damp sponge
Suitable for moist conditions
100% Polyester

Dim Out

Black Out

Screen

Fire Retardancy

Suitable for roller blinds

Suitable for vertical blinds

Anti Bacterial

Wipe Clean

Wipe with damp sponge

Suitable for moist conditions

100% Polyester

System Components

System Components
