R20C Roller Blind with Crank

PART NO R20C

R20C Roller Blind with Crank

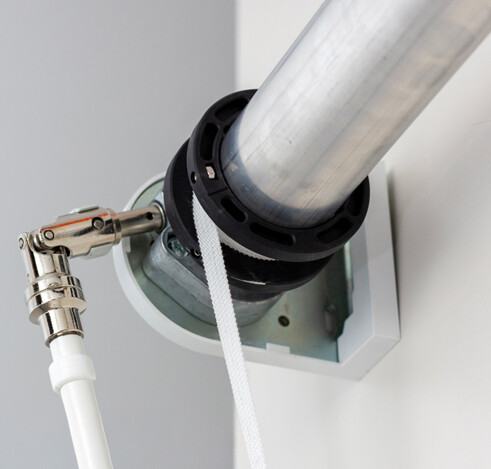

Safe, durable and simple.  With a detachable magnetic crank, the blind is tamper-proof and safe for areas where cords would be a problem.  Comes with a 45mm grooved aluminium barrel and white metal universal brackets for face or top fixing and a robust 1:5 crank mechanism.

  • 45mm barrel diameter
  • 1:5 crank mechanism
  • Vandal and tamper-resistant

Downloads

Benefits

Incorporating a magnetic detachable crank handle so the blind can’t be tampered with and a robust 1:5 crank mechanism for smooth control, the blind is stylish and functional.  Supported by sturdy, stylish metal brackets, the fabric is locked into the barrel and the white teardrop aluminium bottom bar.

Select your ideal fabric colour from the flame retardant YewdaleDefiant fabric range.

Options

  • Bracket covers
  • Alternative bottom bars with full fabric covering including aluminium or plastic and aluminium teardrop in black or silver
  • Wire side-guiding system
  • White aluminium back bar
  • Fixed crank handle
  • Turn-button tag.

Specification

The YewdaleDefiant® R20C crank control roller blind with a magnetic detachable crank handle.  Robust vandal resistant 1:5 crank mechanism and pin end supported by white metal brackets. Flame retardant fabric from the YewdaleDefiant® range, locked into grooved 45mm aluminium barrel along with white teardrop aluminium bottom bar.

Code Description Min Width Max Width Max Drop Max m2
R20C Crank 200 3450 4250 6.5

Based on fabric weight of 220g/m², e.g. Thames. Use of heavier fabrics may require appropriate reductions. Sizes shown in millimetres unless otherwise specified.

Dim Out
Black Out
Screen
Fire Retardancy
Suitable for roller blinds
Suitable for vertical blinds
Anti Bacterial
Wipe Clean
Wipe with damp sponge
Suitable for moist conditions
100% Polyester

Dim Out

Black Out

Screen

Fire Retardancy

Suitable for roller blinds

Suitable for vertical blinds

Anti Bacterial

Wipe Clean

Wipe with damp sponge

Suitable for moist conditions

100% Polyester

System Components

Product Details

Benefits

Incorporating a magnetic detachable crank handle so the blind can’t be tampered with and a robust 1:5 crank mechanism for smooth control, the blind is stylish and functional.  Supported by sturdy, stylish metal brackets, the fabric is locked into the barrel and the white teardrop aluminium bottom bar.

Select your ideal fabric colour from the flame retardant YewdaleDefiant fabric range.

Options

  • Bracket covers
  • Alternative bottom bars with full fabric covering including aluminium or plastic and aluminium teardrop in black or silver
  • Wire side-guiding system
  • White aluminium back bar
  • Fixed crank handle
  • Turn-button tag.

Specification

The YewdaleDefiant® R20C crank control roller blind with a magnetic detachable crank handle.  Robust vandal resistant 1:5 crank mechanism and pin end supported by white metal brackets. Flame retardant fabric from the YewdaleDefiant® range, locked into grooved 45mm aluminium barrel along with white teardrop aluminium bottom bar.

Min Width: 200

Max Width: 3450

Max Drop: 4250

Max m2: 6.5

Based on fabric weight of 220g/m², e.g. Thames. Use of heavier fabrics may require appropriate reductions. Sizes shown in millimetres unless otherwise specified.

Fabric Options

Dim Out
Black Out
Screen
Fire Retardancy
Suitable for roller blinds
Suitable for vertical blinds
Anti Bacterial
Wipe Clean
Wipe with damp sponge
Suitable for moist conditions
100% Polyester

Dim Out

Black Out

Screen

Fire Retardancy

Suitable for roller blinds

Suitable for vertical blinds

Anti Bacterial

Wipe Clean

Wipe with damp sponge

Suitable for moist conditions

100% Polyester

System Components

System Components
