K100 Shower Track

PART NO K100

K100 Shower Track

Specifically designed for high-risk mental health facilities, the rigid, high-grade aluminium track uses magnetic wall or top fix brackets which separate under an excess load.  The 100% fail-safe anti-ligature track is maintenance-free with wheeled roller hooks.

  • Mounted on magnetic brackets
  • Spans up to 2.5m between hangers
  • Self-lubricating roller runners

Downloads

Benefits

Strength and simplicity make the K100 the first choice for a full number of applications. The maintenance-free, premium quality track system has a strong and attractive aluminium profile which offers you more for less, in that it is able to span 2.5 metres between hangers, providing long term reliability.

Curtain removal points are provided as standard on every track for added convenience when replacing curtains.

The self-lubricating roller runner hooks are quickly loaded into the track through this point of access, making the process easy.

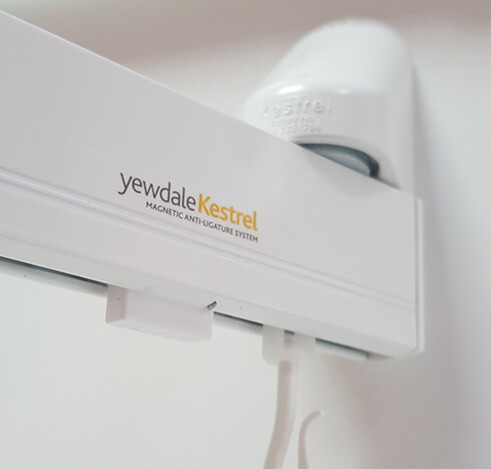

Mounted on magnetic brackets for 100% fail-safe anti-ligature functionality.

Options

  • Silver anodised track
  • Any RAL colour available to order
  • Biosafe® antibacterial treatment option available within white powder-coated finish only.

Specification

The magnetic anti-ligature YewdaleKestrel® K100 shower track system as manufactured by Yewdale, +44 (0)1268 570900. Track manufactured from premium quality aluminium with white powder-coated finish. Complete with roller runner hooks at 10 per metre, and magnetic wall-fix / top-fix brackets spaced in accordance with manufacturers recommendations. Fitting to be carried out by trained and accredited personnel.

O+M Guidance

It is an NHS Estates requirement that items suspended on load-release support systems should be maintained and load-tested in accordance with the manufacturer’s instructions on an annual basis. The YewdaleKestrel® system is maintenance-free and its performance remains constant even after repeated use. It is a requirement, however, to carry out a physical inspection of YewdaleKestrel® fittings to identify any possible damage or evidence of tampering.

Safety Note

Sensitive electronic equipment may be damaged by proximity to a magnetic field and should not come within 150mm of the underside of the brackets. Any load-release device, by its nature, may cause damage when operated. Articles suspended from the YewdaleKestrel® magnetic anti-ligature system will come down when pulled.

YewdaleKestrel® products are designed as standalone products only. Care should be taken when assessing or arranging a room to ensure that YewdaleKestrel® products cannot be misused in conjunction with any other item, furniture or fixings in the room. It is the responsibility of the end-user or client to ensure the product is suitable for the environment it is being installed in. YewdaleKestrel® products must be fitted by a qualified professional following the manufacturer’s instructions. Failure to do so could jeopardise the product’s effectiveness as an anti-ligature system.

Code Description Fixing Centres (Max.) Bend Compatibility Radius (Min.) Arch Compatibility
K100 Shower Track 2500* Yes 300 No

Sizes shown in millimetres unless otherwise specified. *2000mm (max) spacing if direct ceiling fixed.

Dim Out
Black Out
Screen
Fire Retardancy
Suitable for roller blinds
Suitable for vertical blinds
Anti Bacterial
Wipe Clean
Wipe with damp sponge
Suitable for moist conditions
100% Polyester

Dim Out

Black Out

Screen

Fire Retardancy

Suitable for roller blinds

Suitable for vertical blinds

Anti Bacterial

Wipe Clean

Wipe with damp sponge

Suitable for moist conditions

100% Polyester

System Components

Product Details

Benefits

Strength and simplicity make the K100 the first choice for a full number of applications. The maintenance-free, premium quality track system has a strong and attractive aluminium profile which offers you more for less, in that it is able to span 2.5 metres between hangers, providing long term reliability.

Curtain removal points are provided as standard on every track for added convenience when replacing curtains.

The self-lubricating roller runner hooks are quickly loaded into the track through this point of access, making the process easy.

Mounted on magnetic brackets for 100% fail-safe anti-ligature functionality.

Options

  • Silver anodised track
  • Any RAL colour available to order
  • Biosafe® antibacterial treatment option available within white powder-coated finish only.

Specification

The magnetic anti-ligature YewdaleKestrel® K100 shower track system as manufactured by Yewdale, +44 (0)1268 570900. Track manufactured from premium quality aluminium with white powder-coated finish. Complete with roller runner hooks at 10 per metre, and magnetic wall-fix / top-fix brackets spaced in accordance with manufacturers recommendations. Fitting to be carried out by trained and accredited personnel.

O+M Guidance

It is an NHS Estates requirement that items suspended on load-release support systems should be maintained and load-tested in accordance with the manufacturer’s instructions on an annual basis. The YewdaleKestrel® system is maintenance-free and its performance remains constant even after repeated use. It is a requirement, however, to carry out a physical inspection of YewdaleKestrel® fittings to identify any possible damage or evidence of tampering.

Safety Note

Sensitive electronic equipment may be damaged by proximity to a magnetic field and should not come within 150mm of the underside of the brackets. Any load-release device, by its nature, may cause damage when operated. Articles suspended from the YewdaleKestrel® magnetic anti-ligature system will come down when pulled.

YewdaleKestrel® products are designed as standalone products only. Care should be taken when assessing or arranging a room to ensure that YewdaleKestrel® products cannot be misused in conjunction with any other item, furniture or fixings in the room. It is the responsibility of the end-user or client to ensure the product is suitable for the environment it is being installed in. YewdaleKestrel® products must be fitted by a qualified professional following the manufacturer’s instructions. Failure to do so could jeopardise the product’s effectiveness as an anti-ligature system.

Fixing Centres (Max.): 2500*

Bend Compatibility: Yes

Radius (Min.): 300

Arch Compatibility: No

Sizes shown in millimetres unless otherwise specified. *2000mm (max) spacing if direct ceiling fixed.

Fabric Options

Dim Out
Black Out
Screen
Fire Retardancy
Suitable for roller blinds
Suitable for vertical blinds
Anti Bacterial
Wipe Clean
Wipe with damp sponge
Suitable for moist conditions
100% Polyester

Dim Out

Black Out

Screen

Fire Retardancy

Suitable for roller blinds

Suitable for vertical blinds

Anti Bacterial

Wipe Clean

Wipe with damp sponge

Suitable for moist conditions

100% Polyester

System Components

System Components
