K100 Curtain Divider Track

PART NO K100

K100 Curtain Divider Track

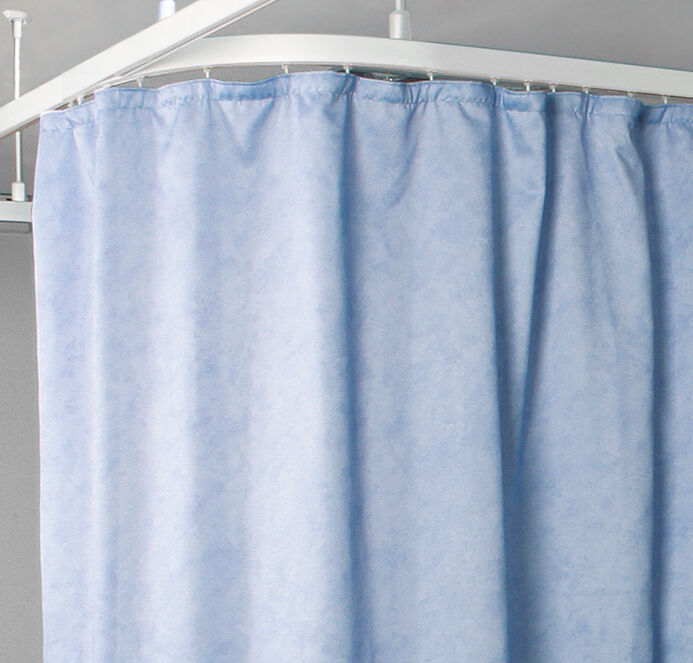

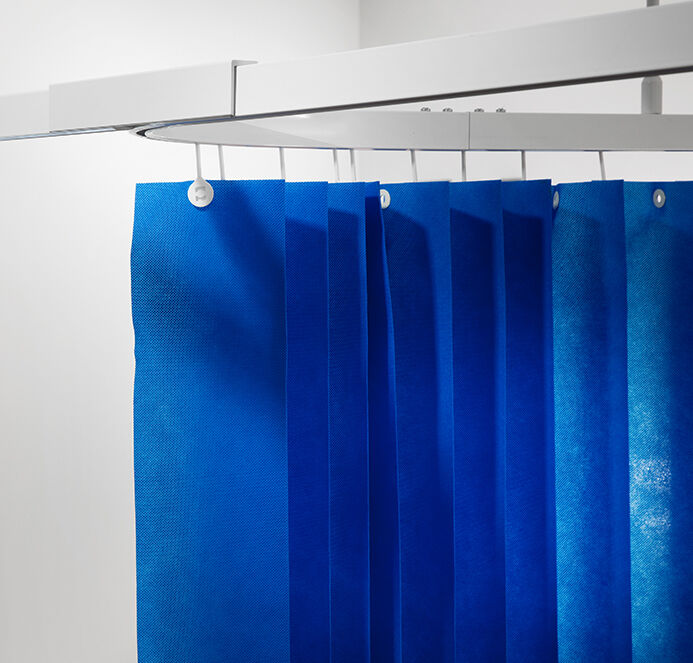

Used in mental health facilities worldwide, the rigid, high-grade aluminium track can be ceiling or wall fixed with magnetic brackets providing a 100% fail-safe anti-ligature use.  Maintenance-free, with self-lubricating wheeled roller hooks and a curtain removal point as standard.

  • Mounted on magnetic brackets
  • Spans up to 2.5m between hangers
  • Self lubricating roller runners

Downloads

Benefits

Strength and simplicity make the K100 the first choice for a full number of applications. The maintenance-free, premium quality track system has a strong and attractive aluminium profile which offers you more for less. It is able to span 2.5 metres between hangers, providing long-term reliability.

In a similar fashion, curtain removal points are provided as standard on every track for added convenience when replacing curtains.

The self-lubricating roller runner hooks are quickly loaded into the track through this point of access, making the process an easy experience.

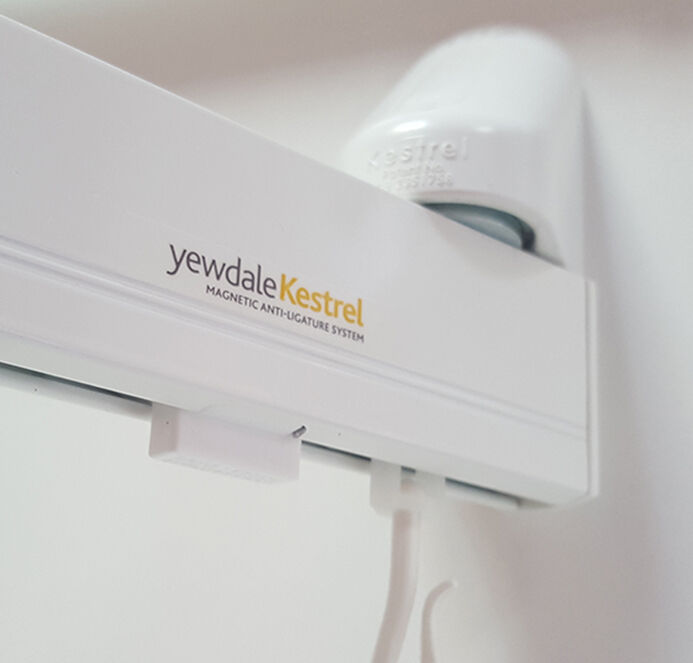

Mounted on magnetic brackets for 100% fail-safe anti-ligature functionality.

Complies fully with the requirements of HTM66.

Options

  • Silver anodised track
  • Any RAL colour available to order
  • Biosafe® antibacterial treatment option available within white powder-coated finish only

Specification

The magnetic anti-ligature YewdaleKestrel® K100 curtain divider track system as manufactured by Yewdale, +44 (0)1268 570900. Track manufactured from premium quality aluminium with silver anodised / white powder-coated finish, able to span 2.5 metres without support. Double hangers to ensure full functionality of the system. Complete with roller runner hooks at 10 per metre, curtain removal points per section and magnetic wall-fix / top-fix brackets, and overlaps as necessary, spaced in accordance with manufacturers recommendations. Fitting to be carried out by trained and accredited personnel.

O+M Guidance

It is an NHS Estates requirement that items suspended on load-release support systems should be maintained and load-tested in accordance with the manufacturer’s instructions on an annual basis. The YewdaleKestrel® system is maintenance-free and its performance remains constant even after repeated use. It is a requirement, however, to carry out a physical inspection of YewdaleKestrel® fittings to identify any possible damage or evidence of tampering.

Safety Note

Sensitive electronic equipment may be damaged by proximity to a magnetic field and should not come within 150mm of the underside of the brackets. Any load-release device, by its nature, may cause damage when operated. Articles suspended from the YewdaleKestrel® magnetic anti-ligature system will come down when pulled.


YewdaleKestrel® products are designed as standalone products only. Care should be taken when assessing or arranging a room to ensure that YewdaleKestrel® products cannot be misused in conjunction with any other item, furniture or fixings in the room. It is the responsibility of the end-user or client to ensure the product is suitable for the environment it is being installed in. YewdaleKestrel® products must be fitted by a qualified professional following the manufacturer’s instructions. Failure to do so could jeopardise the product’s effectiveness as an anti-ligature system.

Code Description Fixing Centres (Max.) Bend Compatibility Radius (Min.) Arch Compatibility
K100 Curtain Divider Track 2500* Yes 300 No

Sizes shown in millimetres unless otherwise specified. *2000mm (max) spacing if direct ceiling fixed.

System Components

Product Details

Benefits

Strength and simplicity make the K100 the first choice for a full number of applications. The maintenance-free, premium quality track system has a strong and attractive aluminium profile which offers you more for less. It is able to span 2.5 metres between hangers, providing long-term reliability.

In a similar fashion, curtain removal points are provided as standard on every track for added convenience when replacing curtains.

The self-lubricating roller runner hooks are quickly loaded into the track through this point of access, making the process an easy experience.

Mounted on magnetic brackets for 100% fail-safe anti-ligature functionality.

Complies fully with the requirements of HTM66.

Options

  • Silver anodised track
  • Any RAL colour available to order
  • Biosafe® antibacterial treatment option available within white powder-coated finish only

Specification

The magnetic anti-ligature YewdaleKestrel® K100 curtain divider track system as manufactured by Yewdale, +44 (0)1268 570900. Track manufactured from premium quality aluminium with silver anodised / white powder-coated finish, able to span 2.5 metres without support. Double hangers to ensure full functionality of the system. Complete with roller runner hooks at 10 per metre, curtain removal points per section and magnetic wall-fix / top-fix brackets, and overlaps as necessary, spaced in accordance with manufacturers recommendations. Fitting to be carried out by trained and accredited personnel.

O+M Guidance

It is an NHS Estates requirement that items suspended on load-release support systems should be maintained and load-tested in accordance with the manufacturer’s instructions on an annual basis. The YewdaleKestrel® system is maintenance-free and its performance remains constant even after repeated use. It is a requirement, however, to carry out a physical inspection of YewdaleKestrel® fittings to identify any possible damage or evidence of tampering.

Safety Note

Sensitive electronic equipment may be damaged by proximity to a magnetic field and should not come within 150mm of the underside of the brackets. Any load-release device, by its nature, may cause damage when operated. Articles suspended from the YewdaleKestrel® magnetic anti-ligature system will come down when pulled.


YewdaleKestrel® products are designed as standalone products only. Care should be taken when assessing or arranging a room to ensure that YewdaleKestrel® products cannot be misused in conjunction with any other item, furniture or fixings in the room. It is the responsibility of the end-user or client to ensure the product is suitable for the environment it is being installed in. YewdaleKestrel® products must be fitted by a qualified professional following the manufacturer’s instructions. Failure to do so could jeopardise the product’s effectiveness as an anti-ligature system.

Fixing Centres (Max.): 2500*

Bend Compatibility: Yes

Radius (Min.): 300

Arch Compatibility: No

Sizes shown in millimetres unless otherwise specified. *2000mm (max) spacing if direct ceiling fixed.

System Components

System Components
