100 Curtain Cubicle Track

PART NO 100

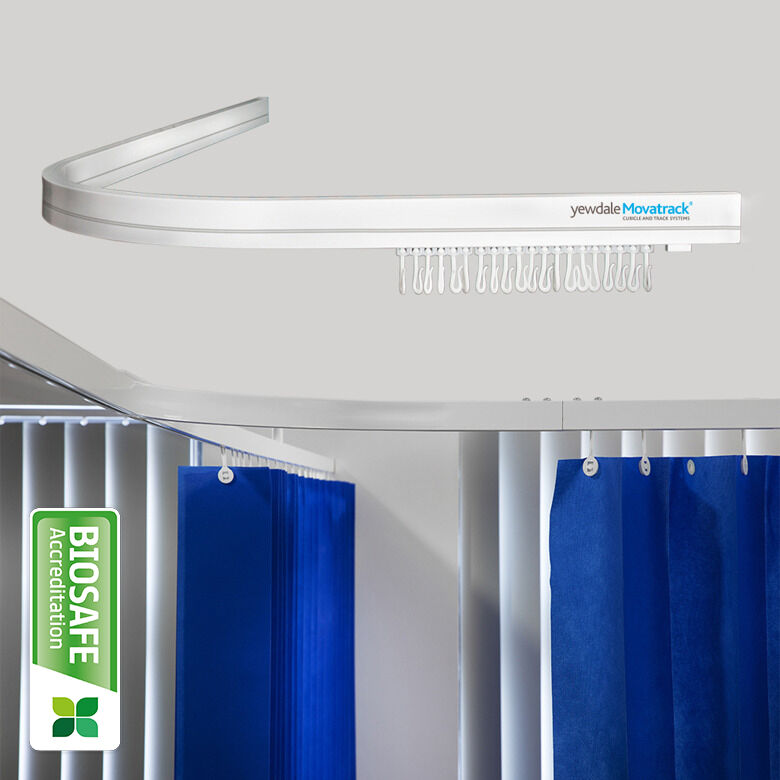

100 Curtain Cubicle Track

Installed in hospitals worldwide - the rigid, high-grade aluminium cubicle track has an enclosed flat-top profile keeping it free of dirt and dust for a maintenance-free and hygienic track.  Comes with wheeled roller hooks for a smooth curtain draw and an easy curtain removal point.

  • Spans 3 metres between hangers

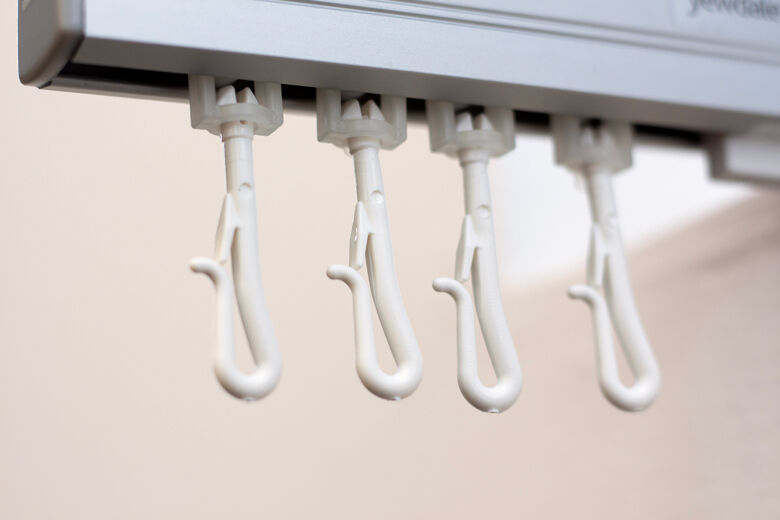

  • Self-lubricating roller runner hooks
  • NHS compliant

Benefits

Strength and simplicity make the YewdaleMovatrack® 100 cubicle track system the first choice for a full number of divider/screen applications.

The maintenance-free, premium quality cubicle track system has an attractive, all-enclosed, flat top aluminium profile which requires no additional expensive inserts, offering you more for less.

A reliable partner for the long-term duration, it is able to span 3.0 metres between hangers, keeping both sightlines clear and installation costs down.

In a similar fashion, curtain removal points are provided as standard on every track for added convenience when replacing curtains.

The self-lubricating roller runner hooks are quickly loaded into the track through this point of access, making the process a pleasurable experience.

Complies fully with the requirements of HTM66.

Options

  • Silver anodised track
  • Any RAL colour available to order
  • Biosafe® antibacterial treatment option available within white powder-coated finish only
  • Cubicle numbering system
  • Track mounted uplighters
  • Stainless steel roller hooks or rings.

Specification

The YewdaleMovatrack® 100 curtain cubicle track system as manufactured by Yewdale, +44 (0)1268 570900. Track manufactured from premium quality aluminium with silver anodised / white powder-coated finish, able to span 3.0 metres without support. Double hangers to ensure full functionality of system. Complete with roller runner hooks at 10 per metre, curtain removal points per section and, overlaps as necessary, spaced in accordance with manufacturers recommendations. Flame retardant curtains from the YewdaleHarrier® range. Layout as shown on accompanying drawings. Fitting to be carried out by trained and accredited personnel.

Code Description Fixing Centres (Max.) Bend Compatibility Radius (Min.) Arch Compatibility
100 100 Curtain Cubicle Track 3000* Yes 300 No

Sizes shown in millimetres unless otherwise specified. *Parallel wall fixing brackets require closer spacing.

System Components

Product Details

Benefits

Strength and simplicity make the YewdaleMovatrack® 100 cubicle track system the first choice for a full number of divider/screen applications.

The maintenance-free, premium quality cubicle track system has an attractive, all-enclosed, flat top aluminium profile which requires no additional expensive inserts, offering you more for less.

A reliable partner for the long-term duration, it is able to span 3.0 metres between hangers, keeping both sightlines clear and installation costs down.

In a similar fashion, curtain removal points are provided as standard on every track for added convenience when replacing curtains.

The self-lubricating roller runner hooks are quickly loaded into the track through this point of access, making the process a pleasurable experience.

Complies fully with the requirements of HTM66.

Options

  • Silver anodised track
  • Any RAL colour available to order
  • Biosafe® antibacterial treatment option available within white powder-coated finish only
  • Cubicle numbering system
  • Track mounted uplighters
  • Stainless steel roller hooks or rings.

Specification

The YewdaleMovatrack® 100 curtain cubicle track system as manufactured by Yewdale, +44 (0)1268 570900. Track manufactured from premium quality aluminium with silver anodised / white powder-coated finish, able to span 3.0 metres without support. Double hangers to ensure full functionality of system. Complete with roller runner hooks at 10 per metre, curtain removal points per section and, overlaps as necessary, spaced in accordance with manufacturers recommendations. Flame retardant curtains from the YewdaleHarrier® range. Layout as shown on accompanying drawings. Fitting to be carried out by trained and accredited personnel.

Fixing Centres (Max.): 3000*

Bend Compatibility: Yes

Radius (Min.): 300

Arch Compatibility: No

Sizes shown in millimetres unless otherwise specified. *Parallel wall fixing brackets require closer spacing.

System Components

System Components
