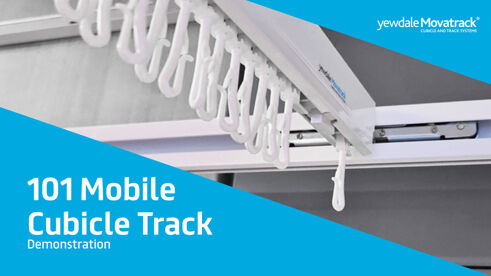

101 Mobile Cubicle Track System

PART NO 101

101 Mobile Cubicle Track System

A mobile cubicle track system that allows staff to quickly alter the bed layout in a hospital ward.  The system comprises of a track being fixed to the wall with mobile divider tracks being able to run up and down the fixed track on trolleys creating space as and when needed. Supplied with a curtain removal point as standard.

  • Maintenance-free system
  • Utilises hospital ward space
  • Fully compatible with Yewdale's curtain divider track

Benefits

The mobile cubicle tracks are a unique feature that utilises space in hospital wards. Cubicle widths can be altered in seconds by nursing staff in response to changes in medical requirements such as patient care or amount of equipment needed. An additional dividing rail will create extra bed-space quickly with patient privacy upheld and maintained.

The system comprises of a track with curtains across the front of a row of bed cubicles, and a backtrack, without curtains, fixed to the wall behind the beds.

Mobile trolleys run within special slots in these tracks and carry the mobile dividing rails smoothly and quietly on neoprene-tyred wheels.

YewdaleMovatrack® 101 includes all the advantages of YewdaleMovatrack® 100 cubicle track and is fully compatible with it.

The strong aluminium sections have a white powder-coated finish as standard.

Options

  • Any RAL colour available to order
  • Cubicle numbering system
  • Stainless steel roller hooks or rings

Specification

The YewdaleMovatrack® 101 mobile curtain cubicle track system as manufactured by Yewdale, +44 (0)1268 570900. Track manufactured from premium quality aluminium with silver anodised / white powder-coated finish, able to span 2.0 metres without support, and including all necessary fittings. Mobile dividing rails fitted with wheeled trolleys running within front and backtracks. Double hangers to ensure full functionality of the system. Complete with roller runner hooks at 10 per metre, curtain removal points per section and, overlap as necessary, spaced in accordance with manufacturers recommendations. Flame retardant curtains from the YewdaleHarrier® range. Layout as shown on accompanying drawings. Fitting to be carried out by trained and accredited personnel.

Code Description Fixing Centres (Max.) Bend Compatibility Radius (Min.) Arch Compatibility
101 101 Mobile Cubicle Track System 2000 No n/a No

Sizes shown in millimetres unless otherwise specified.

System Components

Product Details

Benefits

The mobile cubicle tracks are a unique feature that utilises space in hospital wards. Cubicle widths can be altered in seconds by nursing staff in response to changes in medical requirements such as patient care or amount of equipment needed. An additional dividing rail will create extra bed-space quickly with patient privacy upheld and maintained.

The system comprises of a track with curtains across the front of a row of bed cubicles, and a backtrack, without curtains, fixed to the wall behind the beds.

Mobile trolleys run within special slots in these tracks and carry the mobile dividing rails smoothly and quietly on neoprene-tyred wheels.

YewdaleMovatrack® 101 includes all the advantages of YewdaleMovatrack® 100 cubicle track and is fully compatible with it.

The strong aluminium sections have a white powder-coated finish as standard.

Options

  • Any RAL colour available to order
  • Cubicle numbering system
  • Stainless steel roller hooks or rings

Specification

The YewdaleMovatrack® 101 mobile curtain cubicle track system as manufactured by Yewdale, +44 (0)1268 570900. Track manufactured from premium quality aluminium with silver anodised / white powder-coated finish, able to span 2.0 metres without support, and including all necessary fittings. Mobile dividing rails fitted with wheeled trolleys running within front and backtracks. Double hangers to ensure full functionality of the system. Complete with roller runner hooks at 10 per metre, curtain removal points per section and, overlap as necessary, spaced in accordance with manufacturers recommendations. Flame retardant curtains from the YewdaleHarrier® range. Layout as shown on accompanying drawings. Fitting to be carried out by trained and accredited personnel.

Fixing Centres (Max.): 2000

Bend Compatibility: No

Radius (Min.): n/a

Arch Compatibility: No

Sizes shown in millimetres unless otherwise specified.

System Components

System Components
