Defiant

  • R57 Overhead Electric

  • Part No R57

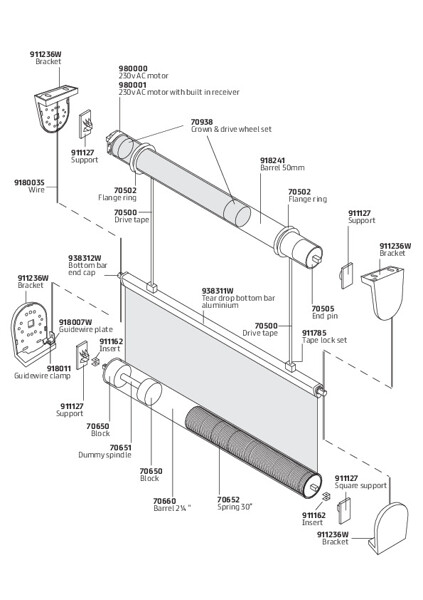

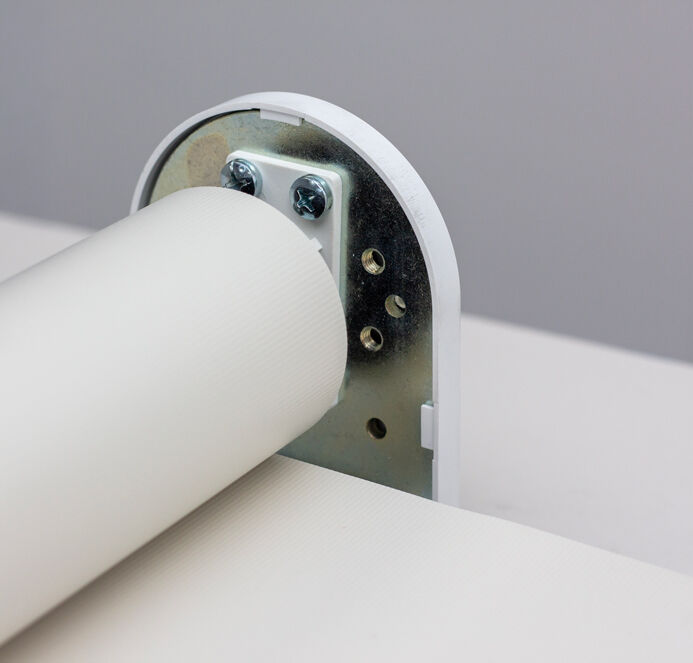

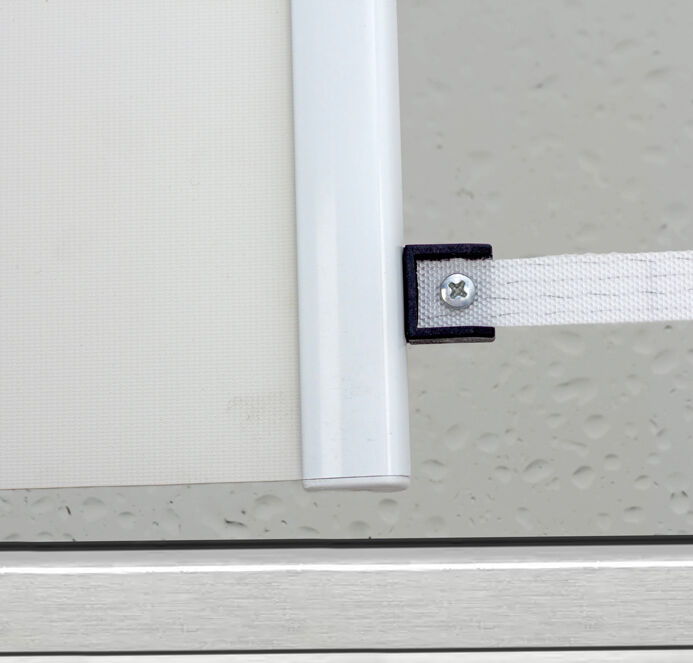

  • This YewdaleDefiant® R57 overhead roller blind system is supplied with a 240v AC Yewdale motor. White aluminium brackets for top or face fixing with 50 and 57mm grooved aluminium barrels. Fabric is mounted onto a sprung 57mm aluminium barrel whilst at the other end it is fitted to a white Tear Drop aluminium bottom bar, attached to two draw tapes. These tapes are attached, between flanged guides, to the 50mm drive barrel, operated by 1:4 gear control mechanism and 240v AC electric motor.

    View full details

  • Enquire about this product

Fabric Selectors

Select and download from the fabric selectors below.

AmazonDartMedwayRoachRoeThamesHarrier
Dim OutYesYes
Black OutYesYesYes
ScreenYes
Fire RetardancyYesYesYesYesYesYesYes
Suitable for roller blindsYesYesYesYesYesYes
Suitable for vertical blindsYesYesYesYesYes
Anti BacterialYesYesYesYes
Wipe CleanYesYesYes
Wipe with damp spongeYesYesYes
Suitable for moist conditionsYesYesYesYesYesYesYes
100% PolyesterYesYesYesYes
DownloadDownloadDownloadDownloadDownloadDownloadDownload

Benefits

Both the R56 and the R57 roller blinds are the ultimate in choice for the shading requirements for sloping or horizontal roof windows. With heavy duty componentry and a powerful spring action to the fabric roller, these blinds may be confidently specified for awkward or inaccessible locations. The electric motor removes the common issues associated with controlling the unit in these areas and solves the problem of unauthorised use. It can be supplied with a number of remote or group control options including RF and infrared.

Options

Tear Drop aluminium bottom bar in black or silver; Remote and/or group control systems.

Specification

YewdaleDefiant® R57 electric operation overhead roller blind with 240v AC Yewdale motor as manufactured by Yewdale, +44 (0)1268 570900. Flame retardant fabric from the YewdaleDefiant® range, on 57mm aluminium barrel with enclosed spring attached to white Tear Drop aluminium bottom bar as standard. 50mm drive barrel connected to electric motor operates blind by means of draw-tapes to the bottom bar. Supported by study, attractive brackets.

CodeDescriptionMin WidthMax WidthMax DropMax m2
R57Overhead Electric 240v720250020004

Based on fabric weight of 220g/m², e.g. Thames. Use of heavier fabrics may require appropriate reductions. Sizes shown in millimetres unless otherwise specified.
