R40 Premium Roller Blind with Sidewinder

PART NO R40-53**R40-70

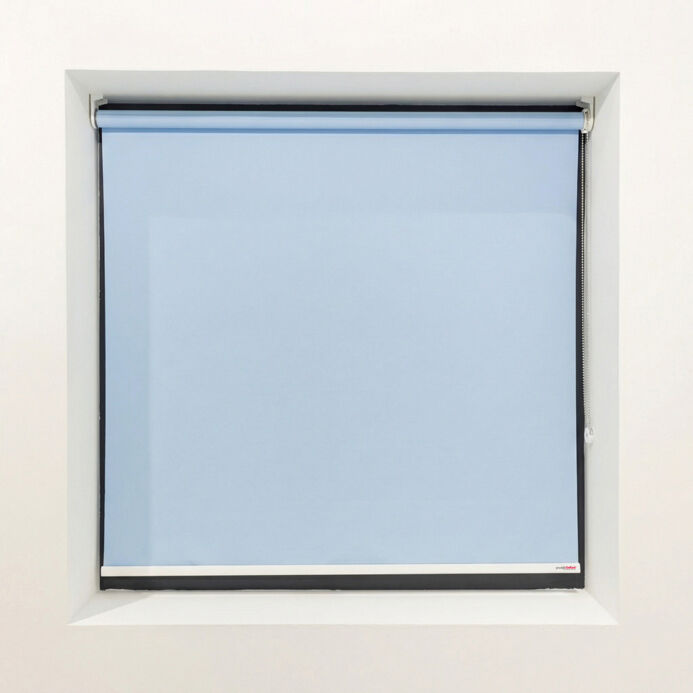

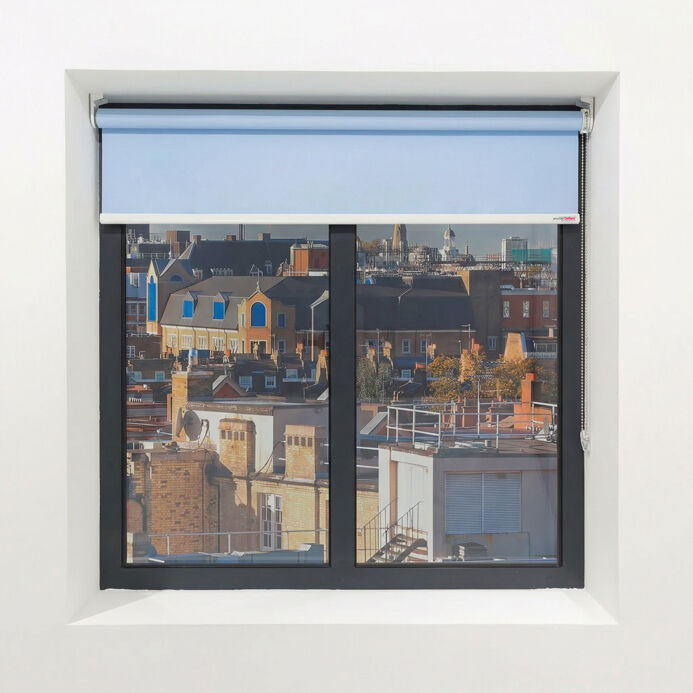

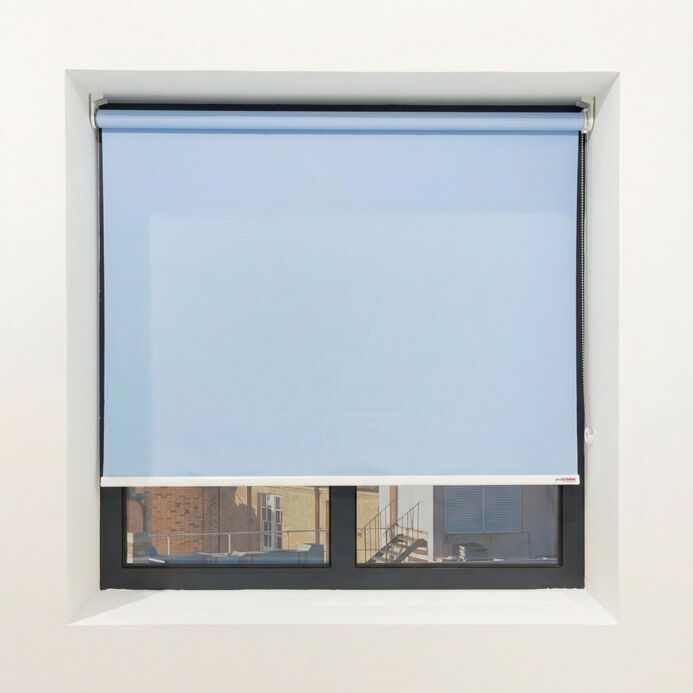

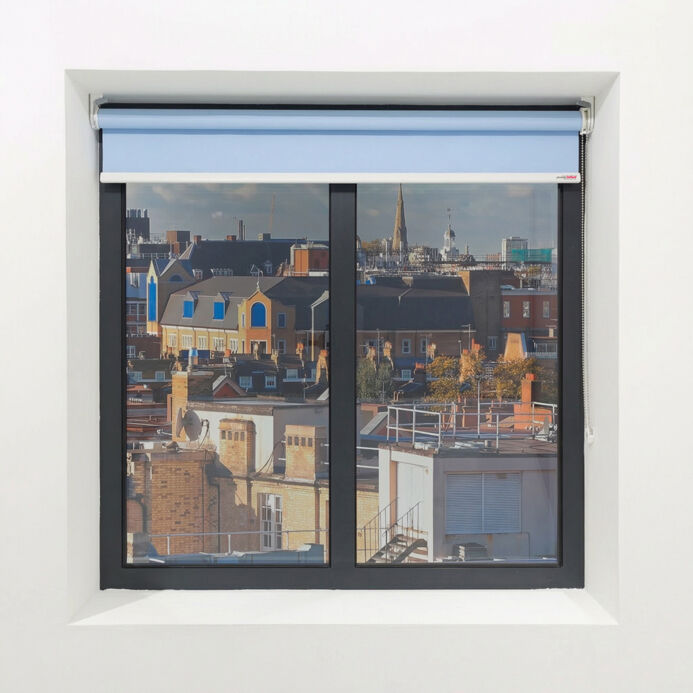

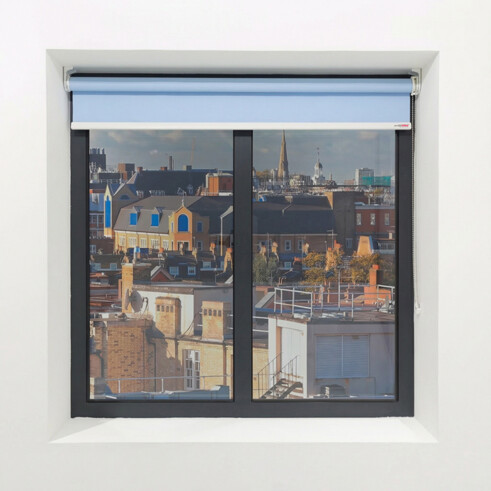

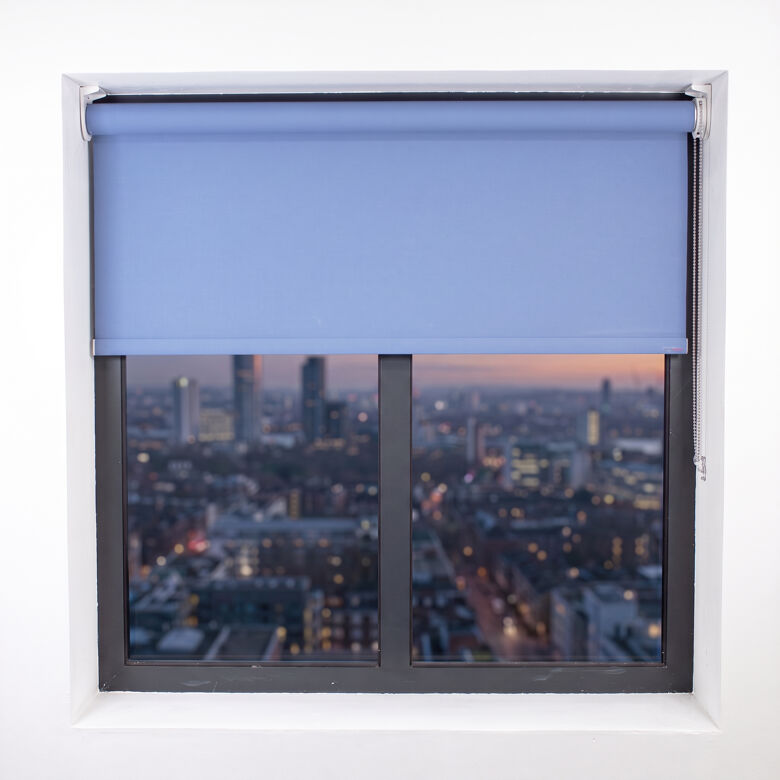

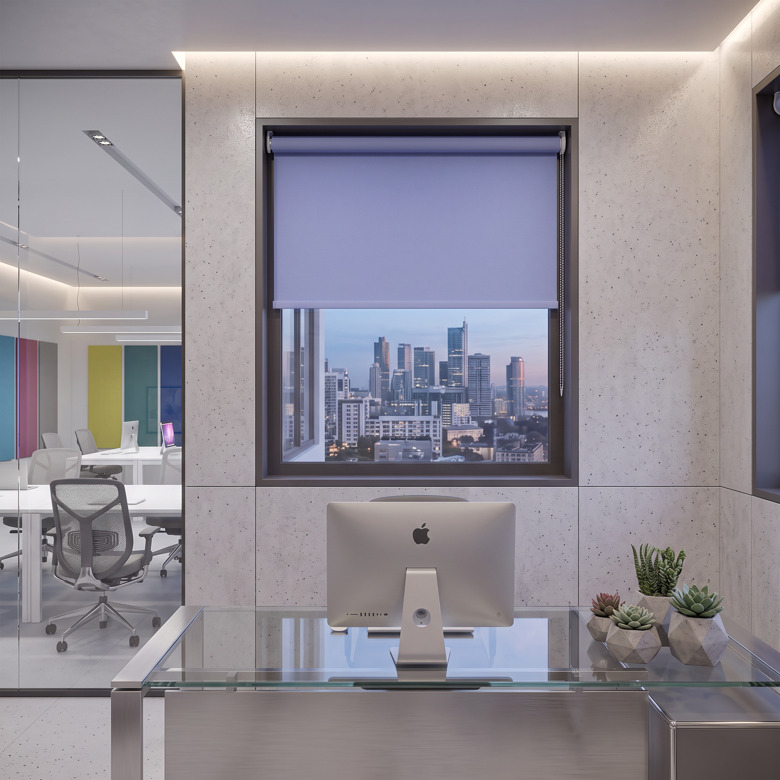

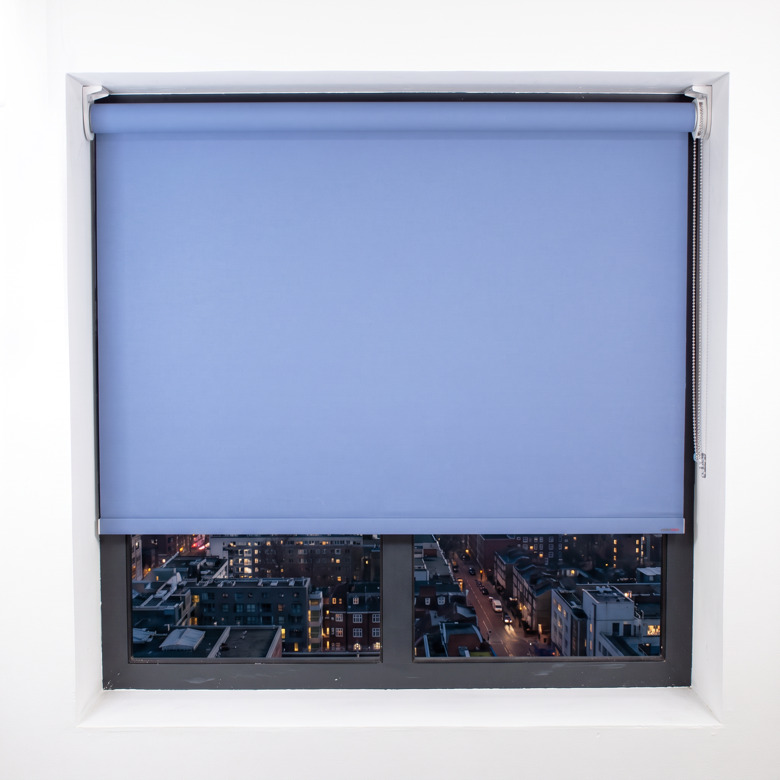

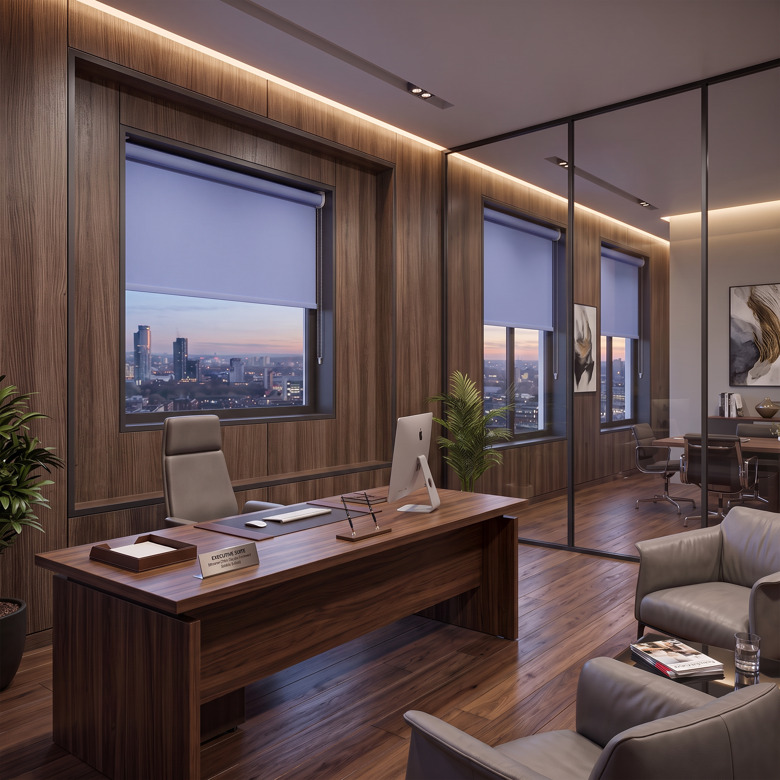

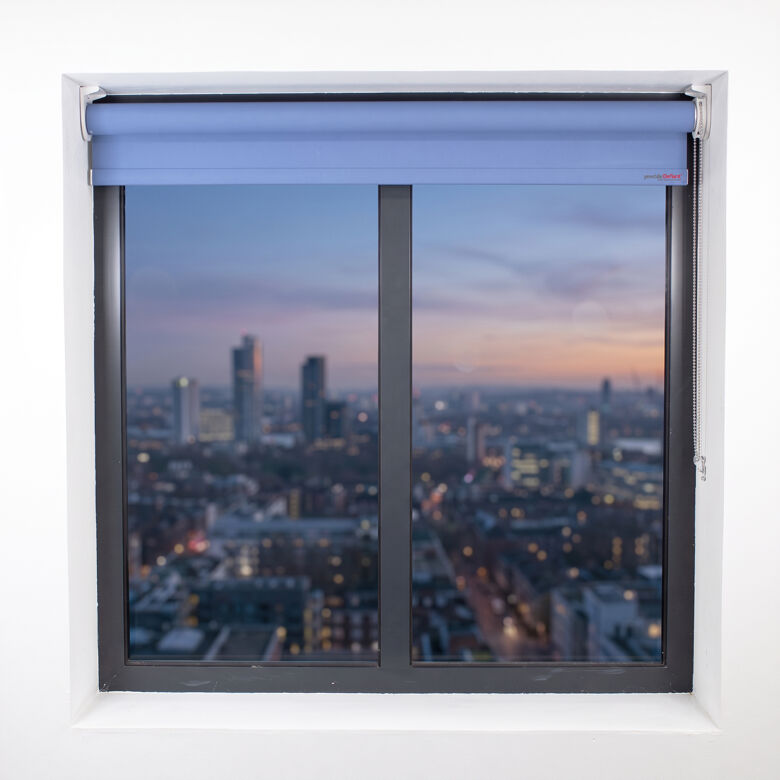

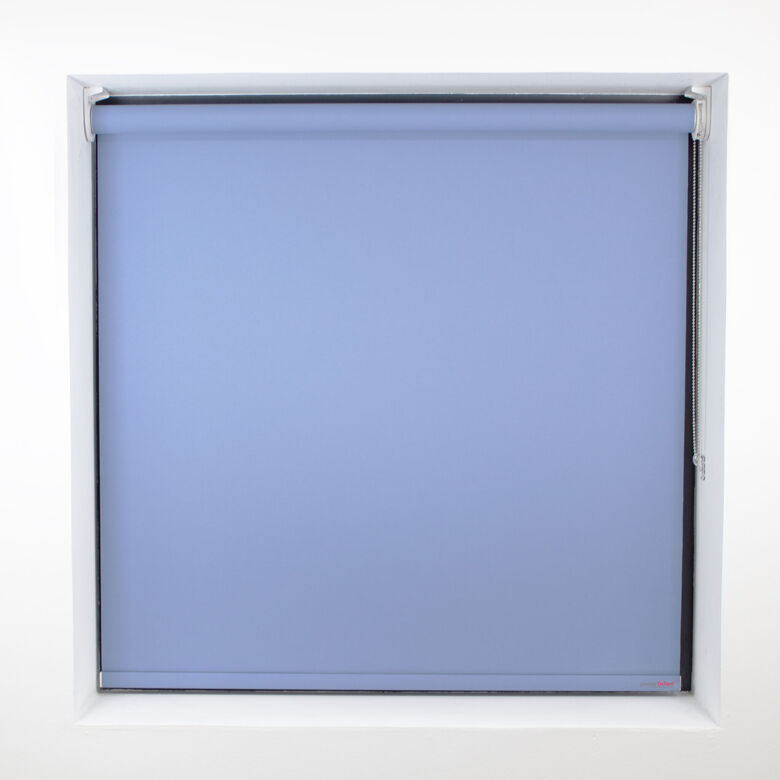

R40 Premium Roller Blind with Sidewinder

A superior quality blind built for heavy-duty use and meticulously designed for a long and trouble-free life. Comes with a premium 1:4 geared sidewinder mechanism as standard and a choice of barrels depending on blind size and fabric weight.

  • 53/70mm barrel diameters
  • 1:4 geared sidewinder mechanism
  • Perfect for heavy-duty operation

Downloads

Benefits

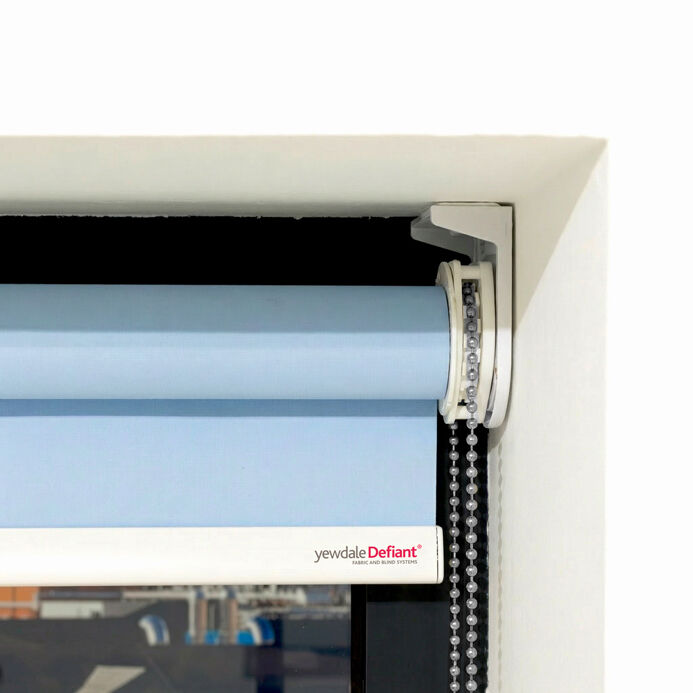

The attractively slim 53mm comes with white plastic brackets, whilst the sturdy 70mm and extremely rigid barrel come with white metal brackets. The fabric is located in the groove of the barrel so it can’t be pulled out but can be slid out sideways for easy repair or replacement.

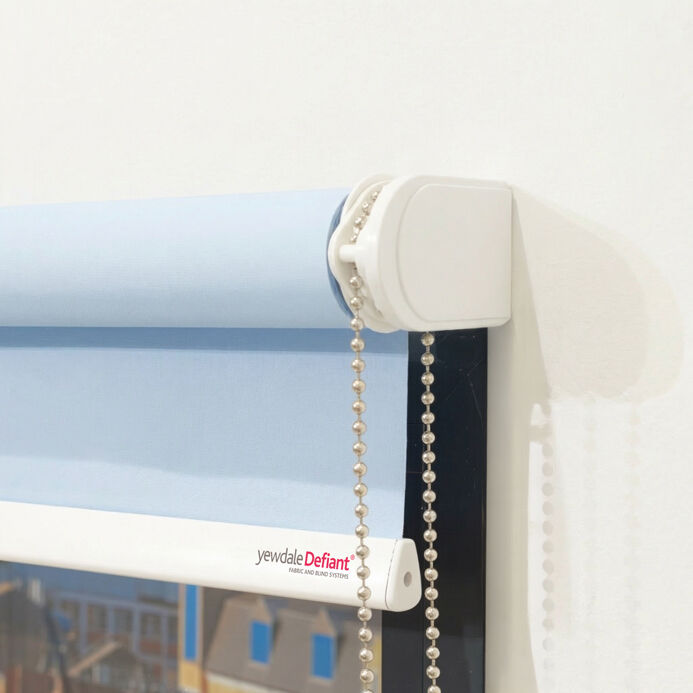

Supplied with a 1:4 geared sidewinder mechanism with metal control chain ensures a strong and reliable operation with a white teardrop aluminium bottom bar as standard.

Features a new and improved end plug with a spring-loaded pin that easily clicks into the bracket, ensuring the blind is secure.

A range of barrels ensures that you can find a superbly-engineered sidewinder roller blind for almost every application.

Select your ideal colour from the flame retardant YewdaleDefiant® fabric range.

Our roller blinds are backed by our lifetime warranty, giving our peace of mind and confidence in our build quality.

Options

  • Alternative bottom bars in plastic or aluminium including fabric covered
  • Teardrop aluminium bottom bar in black or silver
  • Wire side-guiding system
  • Turn-button tag

Specification

YewdaleDefiant® R40 premium sidewinder roller blind with superior quality 1:4 geared sidewinder mechanism for heavy-duty operation. Flame retardant fabric from the YewdaleDefiant® range, locked into grooved 53/70mm aluminium barrel along with white Tear Drop aluminium bottom bar as standard. Supported by study, attractive brackets and incorporating metal control chain.

Find this product on NBS Source



Code Description Min Width Max Width Max Drop Max m2
R40-53**R40-70 Premium Sidewinder 53mm** Premium Sidewinder 70mm 200**200**200 2600**3450**4100 3600**4800**5700 6.5**9.0**11.5

Based on fabric weight of 220g/m², e.g. Thames. Use of heavier fabrics may require appropriate reductions. Sizes shown in millimetres unless otherwise specified.

R40-36 recess size width minus 6mm = blind size width minus 40mm = fabric width
R40-53 recess size width minus 6mm = blind size width minus 45mm = fabric width
R40-70 recess size width minus 6mm = blind size width minus 45mm = fabric width

Dim Out
Black Out
Screen
Fire Retardancy
Suitable for roller blinds
Suitable for vertical blinds
Anti Bacterial
Wipe Clean
Wipe with damp sponge
Suitable for moist conditions
100% Polyester

Dim Out

Black Out

Screen

Fire Retardancy

Suitable for roller blinds

Suitable for vertical blinds

Anti Bacterial

Wipe Clean

Wipe with damp sponge

Suitable for moist conditions

100% Polyester

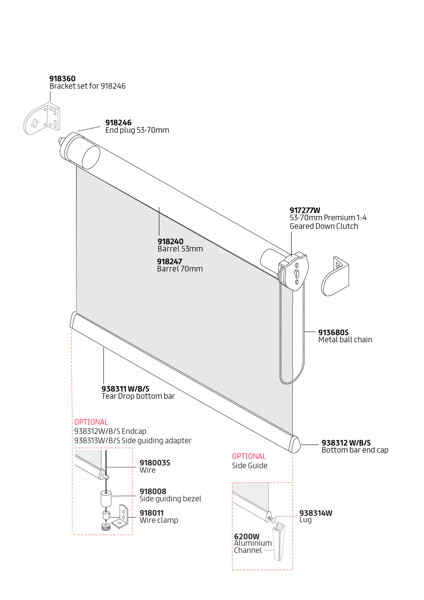

System Components

Product Details

Benefits

The attractively slim 53mm comes with white plastic brackets, whilst the sturdy 70mm and extremely rigid barrel come with white metal brackets. The fabric is located in the groove of the barrel so it can’t be pulled out but can be slid out sideways for easy repair or replacement.

Supplied with a 1:4 geared sidewinder mechanism with metal control chain ensures a strong and reliable operation with a white teardrop aluminium bottom bar as standard.

Features a new and improved end plug with a spring-loaded pin that easily clicks into the bracket, ensuring the blind is secure.

A range of barrels ensures that you can find a superbly-engineered sidewinder roller blind for almost every application.

Select your ideal colour from the flame retardant YewdaleDefiant® fabric range.

Our roller blinds are backed by our lifetime warranty, giving our peace of mind and confidence in our build quality.

Options

  • Alternative bottom bars in plastic or aluminium including fabric covered
  • Teardrop aluminium bottom bar in black or silver
  • Wire side-guiding system
  • Turn-button tag

Specification

YewdaleDefiant® R40 premium sidewinder roller blind with superior quality 1:4 geared sidewinder mechanism for heavy-duty operation. Flame retardant fabric from the YewdaleDefiant® range, locked into grooved 53/70mm aluminium barrel along with white Tear Drop aluminium bottom bar as standard. Supported by study, attractive brackets and incorporating metal control chain.

Find this product on NBS Source



Min Width: 200**200**200

Max Width: 2600**3450**4100

Max Drop: 3600**4800**5700

Max m2: 6.5**9.0**11.5

Based on fabric weight of 220g/m², e.g. Thames. Use of heavier fabrics may require appropriate reductions. Sizes shown in millimetres unless otherwise specified.

R40-36 recess size width minus 6mm = blind size width minus 40mm = fabric width
R40-53 recess size width minus 6mm = blind size width minus 45mm = fabric width
R40-70 recess size width minus 6mm = blind size width minus 45mm = fabric width

Fabric Options

Dim Out
Black Out
Screen
Fire Retardancy
Suitable for roller blinds
Suitable for vertical blinds
Anti Bacterial
Wipe Clean
Wipe with damp sponge
Suitable for moist conditions
100% Polyester

Dim Out

Black Out

Screen

Fire Retardancy

Suitable for roller blinds

Suitable for vertical blinds

Anti Bacterial

Wipe Clean

Wipe with damp sponge

Suitable for moist conditions

100% Polyester

System Components

System Components
